Description

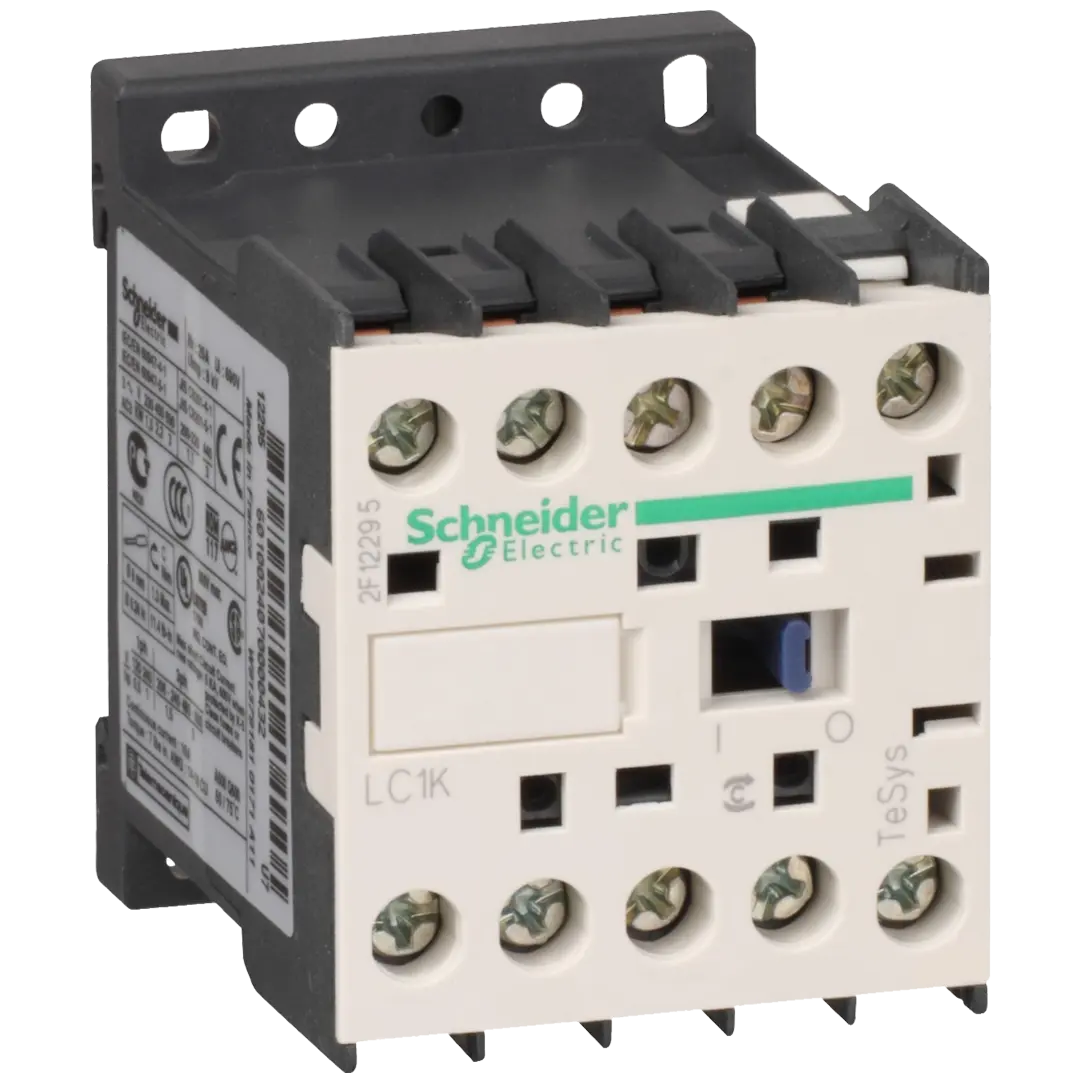

xThree pole contactor for motorized applications up to 1.5 kW at 220...230 V AC 50/60 Hz AC-3. Switch on and off during 20 years electrical power supply of a downstream installation with an electrical and/or mechanical control. The functional unit is characterized by a type 1 NO, a control circuit voltage 230 V AC 50/60 Hz a power circuit voltage 690 V and a maximum allowed intensity by the power circuit 6 A at <= 440 V AC AC-3.
Specifications
x| IP Rating / Detailed | IP2X conforming to VDE 0106 |
| Compliance/Certifications | EN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1,IEC 60335-1:Clause 30.2,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ |
| Part Depth (mm) | 57mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 58mm |
| Connection Type | Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end |
| Rated Operating Voltage | Power circuit: <= 690 V AC <= 400 Hz |
| Current Rating | 6 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,6 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Power Consumption | in VA |
| Operating Period(Mech) | 10 Mcycles |
| Operating Period(Elec) | 1.3 Mcycles 6 A AC-3 at Ue <= 440 V,1.3 Mcycles 6 A AC-3e at Ue <= 440 V,0.05 Mcycles 36 A AC-4 at Ue <= 440 V |
