Description

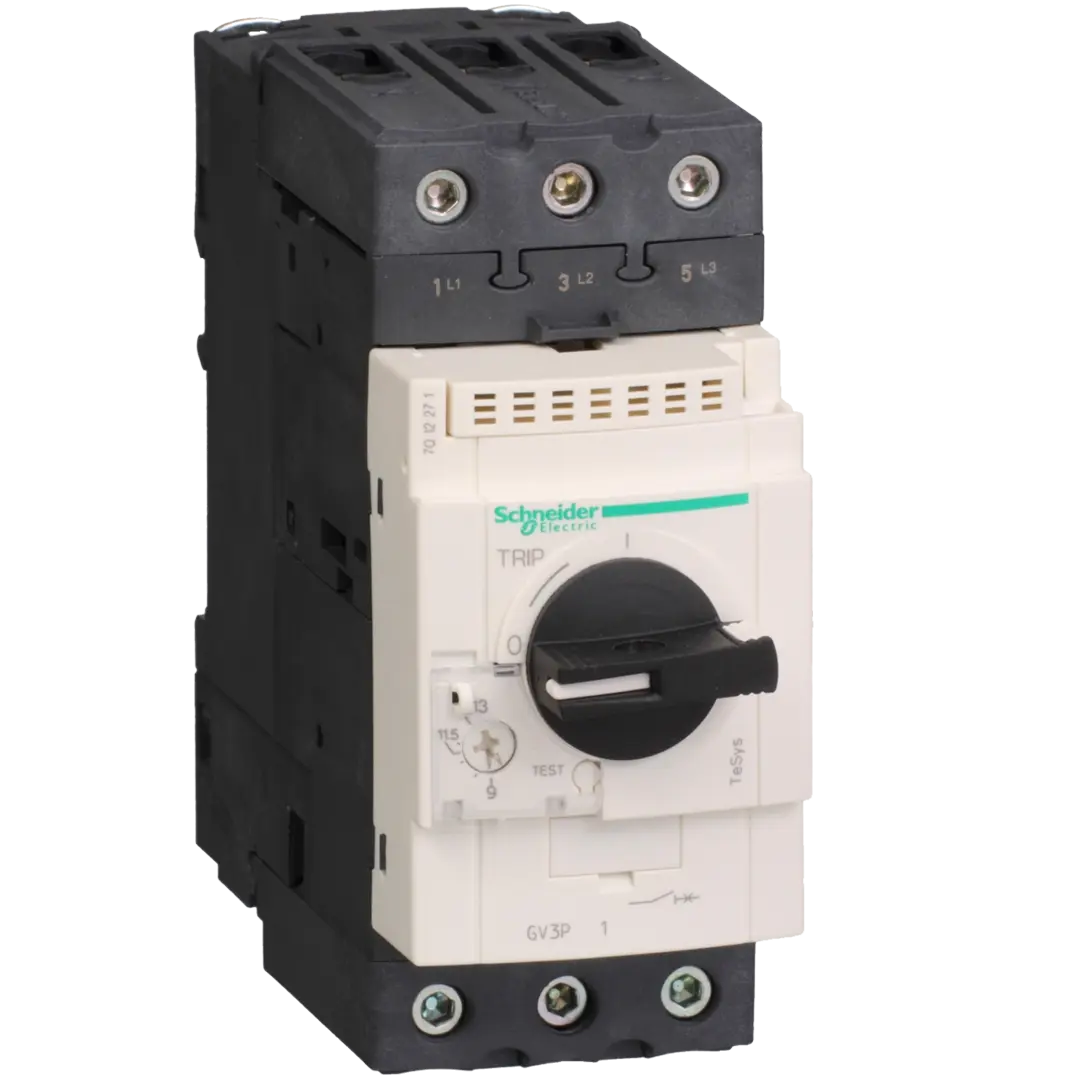

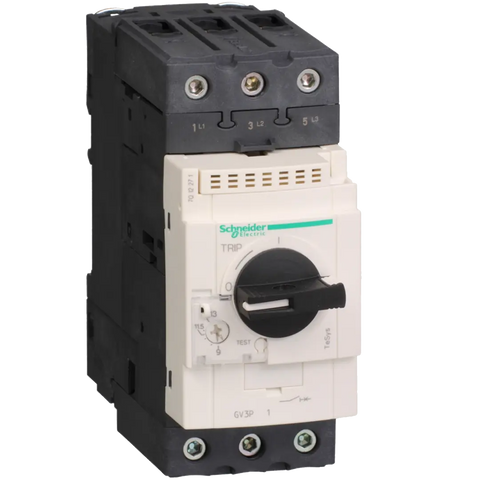

xThe main function of the TeSys GV3P/L Motor Circuit Breakers is to provide control and protection from 5.5 kW to 30 kW motors with voltages up to 690VAC. It has a maximum short-circuit breaking capacity of 100 kA. The functional unit provides this service for a period of 20 years through the system specified by the TeSys GV3P/L Motor Circuit Breakers reference product. These products include GV3P thermal-magnetic and GV3L magnetic circuit breakers.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | EN/IEC 60947-2,EN/IEC 60947-4-1,UL 60947-4-1,CSA C22.2 No 60947-4-1,IEC/EN 60335-1:Clause 30.2,IEC/EN 60335-2-40:Annex JJ |
| Temperature: Operating | -20…60 °C |
| Part Depth (mm) | 136mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 132mm |
| Tightening Torque (N.m) | 5 Nm |
| Max Frequency | 50/60 Hz conforming to IEC 60947-4-1 |
| Type of Voltage | AC |
| Rated Operating Voltage | 690 V AC 50/60 Hz conforming to IEC 60947-2 |
| Operating Period(Mech) | 50000 cycles |
| Operating Period(Elec) | 50000 cycles for AC-3 at 415 V In |
| Colour | Dark grey |
