Description

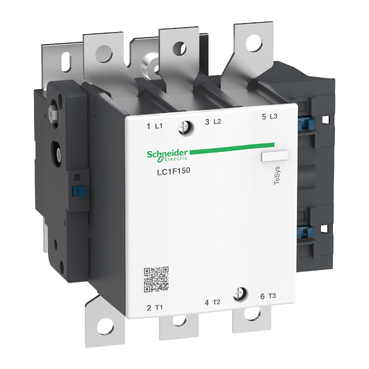

xThis TeSys F contactor is built for heavy-duty applications, managing up to 150A operational current at 440V. It features a versatile control circuit voltage range and exceptional mechanical durability, making it suitable for demanding industrial tasks.
Specifications
x| IP Rating | IP2X |
| Compliance/Certifications | ABS / BV / CB / CSA / DNV / EN 60947-1 / EN 60947-4-1 / IEC 60947-1 / IEC 60947-4-1 / JIS C8201-4-1 / LROS (Lloyds Register of Shipping) / RINA / RMRoS / UKCA / UL |
| Temperature: Operating | -40 °C to 60 °C |
| Part Depth (mm) | 171mm |
| Part Width (mm) | 163.5mm |
| Part Height (mm) | 170mm |
| Weight (g) | 3830.0g |
| Connection Type | Power circuit: lugs-ring terminals 1 cable(s) 120 mm² - busbar cross section: 25 x 3 mm / Power circuit: connector 1 cable(s) 120 mm² / Power circuit: bar 2 cable(s) / Power circuit: bolted connection / Control circuit: screw clamp terminals 1 cable(s) 1 - 4 mm²flexible without cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 4 mm²flexible with cable end / Control circuit: screw clamp terminals 1 cable(s) 1 - 4 mm²flexible with cable end / Control circuit: screw clamp terminals 2 cable(s) 1 - 2.5 mm²solid without cable end / Control circuit: screw clamp terminals 1 cable(s) 1 - 4 mm² / Control circuit: screw clamp terminals 2 cable(s) 1 - 4 mm² / Control circuit: screw clamp terminals 1.0 cable(s) 0.2 - 2.5 mm²flexible without cable end / Control circuit: screw clamp terminals 1.0 cable(s) 0.25 - 2.5 mm²flexible with cable end / Control circuit: screw clamp terminals 1.0 cable(s) 0.2 - 2.5 mm²solid without cable end |
| Rated Operating Voltage | 690 VAC |
| Power Consumption | in VA |
| Operating Period | 10 Mcycles (mechanical) |
