Description

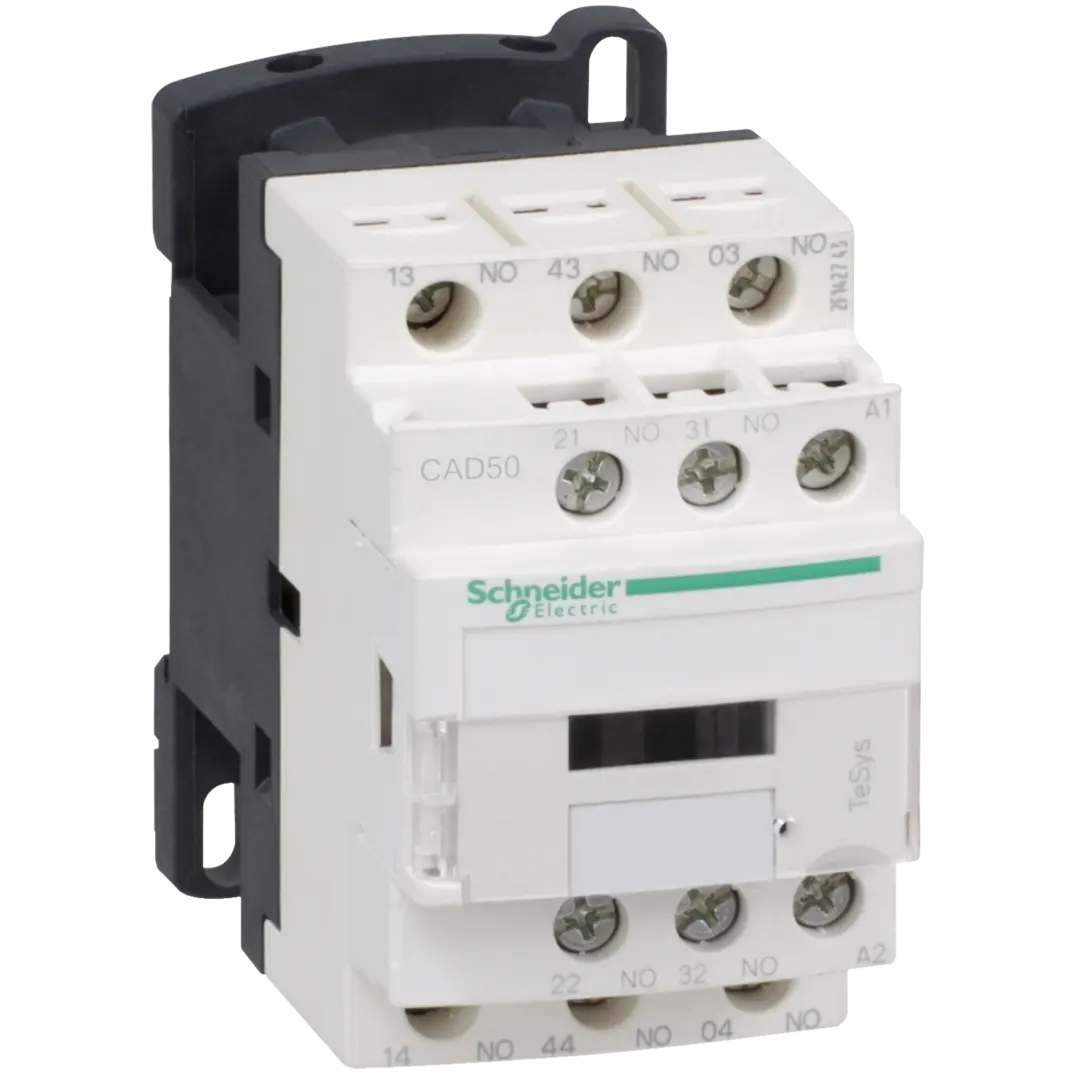

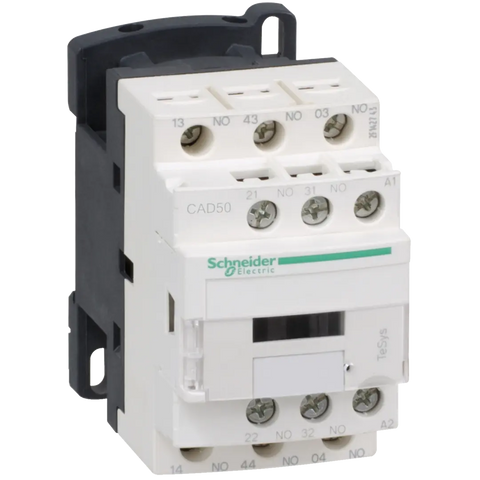

xTeSys CAD includes Control relay which has a Control circuit and a 5 NO pole contact composition. It includes a rated operational voltage of <= 690 V AC 25...400 Hz, control circuit voltage of 230 V AC 50/60 Hz, Irms rated making capacity of 140 A AC and a Rail Plate mounting support.
Specifications
x| IP Rating / Detailed | IP2X front face conforming to VDE 0106 |
| Compliance/Certifications | EN/IEC 60947-5-1,GB/T 14048.5,UL 60947-5-1,CSA C22.2 No 60947-5-1,JIS C8201-5-1 |
| Temperature: Operating | -40…60 °C 60…70 °C with derating |
| Part Depth (mm) | 84mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Tightening Torque (N.m) | 1.2 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end,Screw clamp terminals 1 cable(s) 1…4 mm²solid without cable end,Screw clamp terminals 2 cable(s) 1…4 mm²solid without cable end |
| Rated Operating Voltage | <= 690 V AC 25...400 Hz |
| Power Consumption | in VA |
| Operating Period(Mech) | 30 Mcycles |
