Description

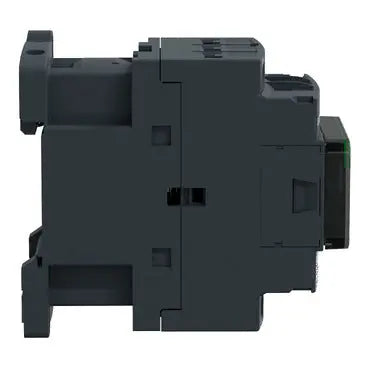

xThis TeSys D contactor features 3 NO poles, supporting up to 18 A at 440 V AC, and includes a 230 V AC coil. It is designed for motor control and resistive load switching.
Specifications
x| IP Rating | IP20 front face conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CB / CCC / CSA / CSA C22.2 No 14 / DNV / EN 60947-4-1 / EN 60947-5-1 / GOST / GL / IEC 60335-1 / IEC 60947-4-1 / IEC 60947-5-1 / LROS (Lloyds register of shipping) / RINA / UL / UL 508 / UKCA / BV |
| Part Depth (mm) | 86mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Weight (g) | 330g |
| Tightening Torque | 1.7 Nm |
| Connection Style | 3 Poles |
| Connection Type | Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1.5…6 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC / 300 VDC |
| Mounting Type | Rail plate |
| Current Rating / Rated Current | 18 A at <= 440 VAC / 32 A at <= 440 VAC / 18 A at <= 440 VAC |
| Operating Period | Mechanical Durability 15 Mcycles / Electrical Durability 1.65 Mcycles / 18 A AC-3 at Ue <= 440 V / 1 Mcycles 32 A AC-1 at Ue <= 440 V / 1.65 Mcycles 18 A AC-3e at Ue <= 440 V |
| Warranty | 18 Months |
