Description

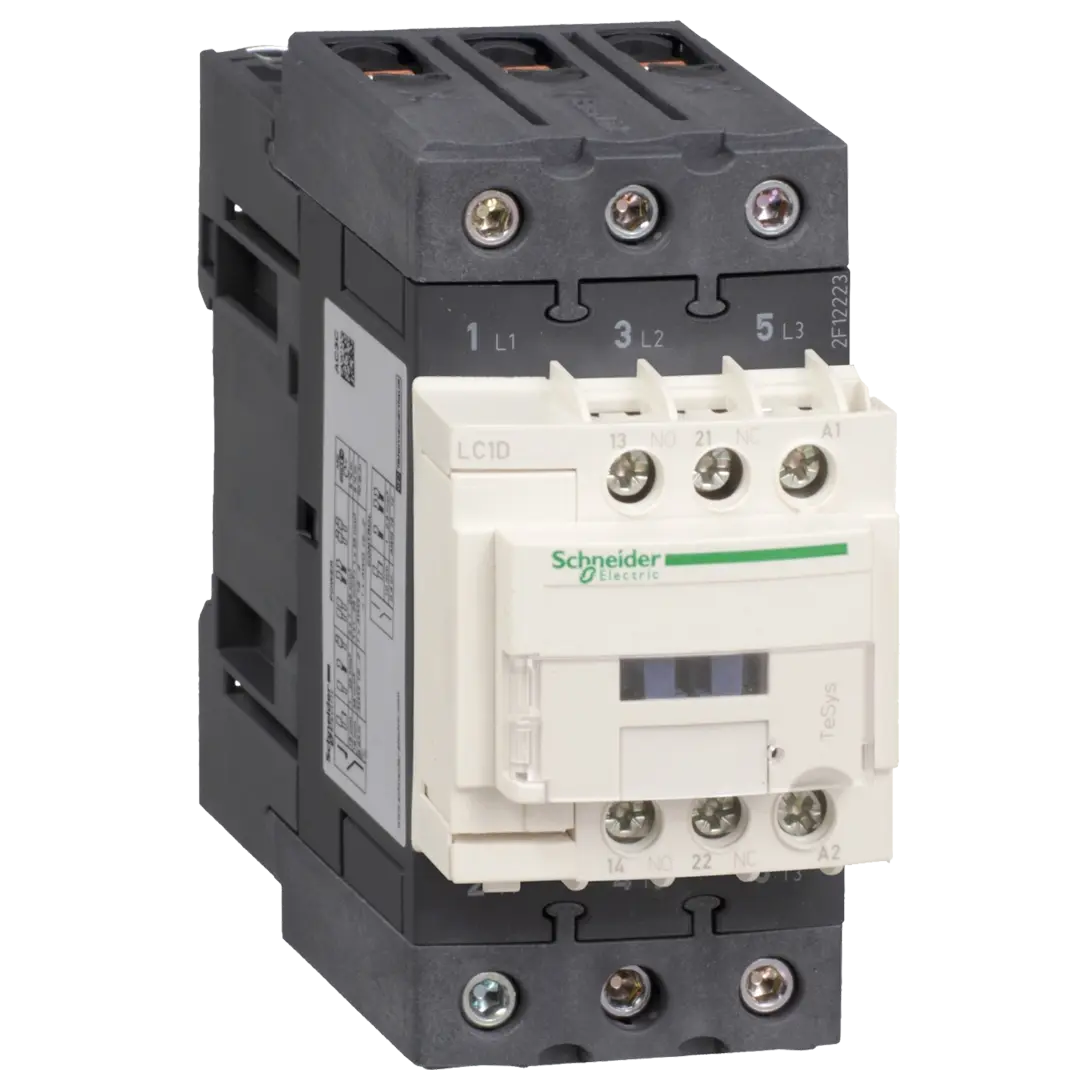

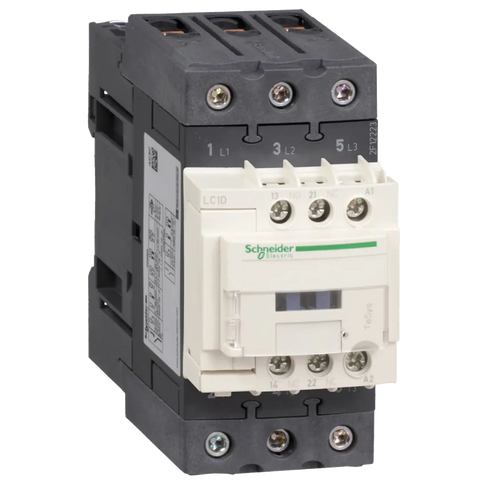

xThe product is a 3P CONT 65A AC3 11kW 3NO 1NC 24VAC COIL included in passive products - non-continuous operation category. The functional unit is to make and break currents up to 9A for motor loads, and up to 25A for resistive loads at voltages of up to 690V for 20 years, in accordance with the IEC60947-1 and IEC60947-4 standards.
Specifications
x| IP Rating / Detailed | IP20 front face conforming to IEC 60529 |
| Compliance/Certifications | EN 60947-4-1,EN 60947-5-1,IEC 60947-4-1,IEC 60947-5-1,CSA C22.2 No 14,UL 60947-4-1,IEC 60335-2-40:Annex JJ,UL 60335-2-40:Annex JJ,IEC 60335-1:Clause 30.2 |
| Part Depth (mm) | 120mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 122mm |
| Weight (g) | 860.0g |
| Connection Type | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end,Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end,Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end,Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible without cable end,Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible without cable end,Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible with cable end,Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible with cable end,Power circuit: screw connection 1 1…35 mm² - cable stiffness: solid without cable end,Power circuit: screw connection 2 1…25 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | Power circuit: <= 690 V AC 25...400 Hz |
| Current Rating | 80 A (at <60 °C) at <= 440 V AC AC-1 for power circuit,65 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,65 A (at <60 °C) at <= 440 V AC AC-3e for power circuit |
| Power Consumption | in VA |
| Operating Period(Mech) | 6 Mcycles |
| Operating Period(Elec) | 1.4 Mcycles 80 A AC-1 at Ue <= 440 V,1.45 Mcycles 65 A AC-3 at Ue <= 440 V,1.45 Mcycles 65 A AC-3e at Ue <= 440 V |
