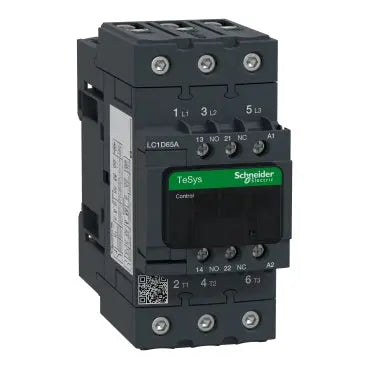

Schneider TeSys D Contactor, 3-pole, 3NO, 110VAC coil, 65A Part number LC1D65AF7

This TeSys D contactor is built for heavy-duty motor control, supporting a 3P configuration and a rated operational current of 65 A at 440 V AC (AC-3). It includes a 110 V AC control circuit and is designed to withstand rigorous industrial use.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This TeSys D contactor is built for heavy-duty motor control, supporting a 3P configuration and a rated operational current of 65 A at 440 V AC (AC-3). It includes a 110 V AC control circuit and is designed to withstand rigorous industrial use.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsCB Scheme / CE / CSA / CSA C22.2 No 14 / EAC / EN 60947-4-1 / EN 60947-5-1 / IEC 60947-4-1 / IEC 60947-5-1 / Marine / UKCA / UL / UL 508 CCC
Part Depth (mm)120mm
Part Width (mm)55mm
Part Height (mm)122mm
Weight (g)860g
Packaging size / unit1 / 10 pc(s)
Tightening Torque1.7 - 5 Nm
Connection TypeControl circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: screw connection 1 1 - 35 mm² - cable stiffness: flexible without cable end / Power circuit: screw connection 2 1 - 25 mm² - cable stiffness: flexible without cable end / Power circuit: screw connection 1 1 - 35 mm² - cable stiffness: flexible with cable end / Power circuit: screw connection 2 1 - 25 mm² - cable stiffness: flexible with cable end / Power circuit: screw connection 1 1 - 35 mm² - cable stiffness: solid without cable end / Power circuit: screw connection 2 1 - 25 mm² - cable stiffness: solid without cable end
Rated Operating Voltage690 VAC
Mounting TypePlate / Rail
Current Rating / Rated Current66 - 80 A
Operating Period6 Mcycles (mechanical) / 1.4 Mcycles 80 A AC-1 at Ue <= 440 V / 1.45 Mcycles 65 A AC-3 at Ue <= 440 V / 1.45 Mcycles 65 A AC-3e at Ue <= 440 V (electrical)
Warranty18 Months
Documents
Documents
x
Download Datasheet
