Description

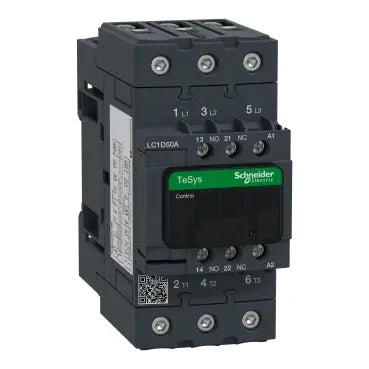

xThis TeSys D contactor features a 3P configuration for motor control and resistive loads, offering a rated operational current of 50 A at 440 V AC (AC-3). It includes a 230 V AC control circuit and provides reliable operation in demanding environments.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CB Scheme / CE / CSA / CSA C22.2 No 14 / EAC / EN 60947-4-1 / EN 60947-5-1 / IEC 60335-1:Clause 30.2 CCC / IEC 60335-2-40:Annex JJ / IEC 60947-4-1 / IEC 60947-5-1 / Marine / UKCA / UL / UL 60335-2-40:Annex JJ / UL 60947-4-1 |
| Part Depth (mm) | 120mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 122mm |
| Weight (g) | 855g |
| Packaging size / unit | 1 / 10 / 160 pc(s) |
| Tightening Torque | 1.7 - 5 Nm |
| Connection Type | Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: screw connection 1 1 - 35 mm² - cable stiffness: flexible without cable end / Power circuit: screw connection 2 1 - 25 mm² - cable stiffness: flexible without cable end / Power circuit: screw connection 1 1 - 35 mm² - cable stiffness: flexible with cable end / Power circuit: screw connection 2 1 - 25 mm² - cable stiffness: flexible with cable end / Power circuit: screw connection 1 1 - 35 mm² - cable stiffness: solid without cable end / Power circuit: screw connection 2 1 - 25 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / Rail |
| Current Rating / Rated Current | 50 - 80 A |
| Operating Period | 6 Mcycles (mechanical) / 1.45 Mcycles 50 A AC-3 at Ue <= 440 V / 1.1 Mcycles 80 A AC-1 at Ue <= 440 V / 1.45 Mcycles 50 A AC-3e at Ue <= 440 V (electrical) |
| Warranty | 18 Months |
