Description

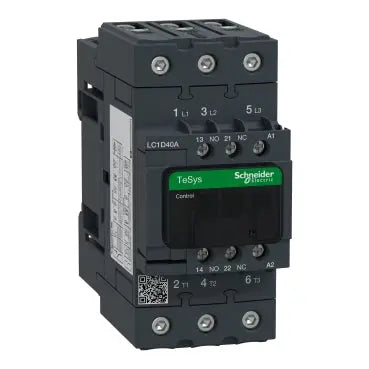

xThis TeSys D contactor offers 3 NO poles and is rated for up to 40 A at 440 V AC. It is suitable for motor control and resistive load applications, with a 230 V AC coil.
Specifications
x| IP Rating | IP20 front face conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CCC / CSA / CSA C22.2 No 14 / EN 60947-4-1 / EN 60947-5-1 / GOST / IEC 60335-1 / IEC 60947-4-1 / IEC 60947-5-1 / UL / UL 508 |
| Part Depth (mm) | 120mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 122mm |
| Weight (g) | 850g |
| Tightening Torque | 1.7 - 2.5 Nm |
| Connection Style | 3 Poles |
| Connection Type | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible without cable end Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible without cable end Power circuit: screw connection 1 1…35 mm² - cable stiffness: flexible with cable end Power circuit: screw connection 2 1…25 mm² - cable stiffness: flexible with cable end Power circuit: screw connection 1 1…35 mm² - cable stiffness: solid without cable end Power circuit: screw connection 2 1…25 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC / 300 VDC |
| Mounting Type | Rail plate |
| Current Rating / Rated Current | 60 A at <= 440 VAC / 40 A at <= 440 VAC / 40 A at <= 440 VAC |
| Operating Period | Mechanical Durability 6 Mcycles / Electrical Durability 1.4 Mcycles / 60 A AC-1 at Ue <= 440 V 1.5 Mcycles / 40 A AC-3 at Ue <= 440 V 1.5 Mcycles / 40 A AC-3e at Ue <= 440 V |
| Warranty | 18 Months |
