Description

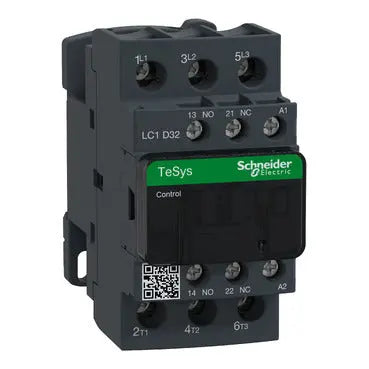

xThis TeSys D contactor is designed for motor control and resistive load applications, featuring a 3P configuration with a rated operational current of 32 A at 440 V AC (AC-3). It supports operational voltages up to 690 V AC, is equipped with a 230 V AC control circuit, and ensures reliable operation in demanding environments.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CB Scheme / CE / CSA / CSA C22.2 No 14 / CSA C22.2 No 60947-4-1 UL / CCC / EAC / EN 60947-4-1 / EN 60947-5-1 / IEC 60335-1:Clause 30.2 / IEC 60335-2-40:Annex JJ / IEC 60947-4-1 / IEC 60947-5-1 / Marine / UKCA / UL / UL 60335-2-40:Annex JJ / UL 60947-4-1 |
| Part Depth (mm) | 92mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 85mm |
| Weight (g) | 375g |
| Packaging size / unit | 1 / 20 / 320 pc(s) |
| Tightening Torque | 1.7 - 2.5 Nm |
| Connection Type | Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 1 2.5 - 10 mm² - cable stiffness: flexible without cable end / Power circuit: screw clamp terminals 2 2.5 - 10 mm² - cable stiffness: flexible without cable end / Power circuit: screw clamp terminals 1 1 - 10 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 2 1.5 - 6 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 1 1.5 - 10 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 2 2.5 - 10 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / Rail |
| Current Rating / Rated Current | 32 - 50 A |
| Operating Period | 15 Mcycles (mechanical) / 1.65 Mcycles 32 A AC-3 at Ue <= 440 V / 1.4 Mcycles 50 A AC-1 at Ue <= 440 V / 1.65 Mcycles 25 A AC-3e at Ue <= 440 V (electrical) |
| Warranty | 18 Months |
