Description

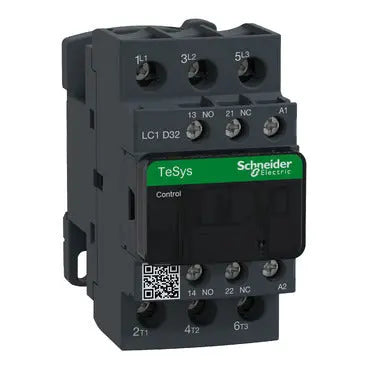

xThis TeSys D contactor offers 3 NO poles and handles up to 32 A at 440 V AC for motor control and resistive load applications. It features a 230 V AC coil and provides durable performance in industrial environments.
Specifications
x| IP Rating | IP20 front face conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CB / CCC / CSA C22.2 No 14 / DNV / EN 60947-4-1 / EN 60947-5-1 / GOST / IEC 60335-1 / IEC 60947-4-1 / IEC 60947-5-1 / LROS (Lloyds register of shipping) / RINA / UL / UL 508 / BV / GL |
| Part Depth (mm) | 92mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 85mm |
| Weight (g) | 375g |
| Tightening Torque | 1.7 Nm |
| Connection Style | 3 Poles |
| Connection Type | Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 2.5…10 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…10 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1.5…6 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1.5…10 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 2.5…10 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC / 300 VDC |
| Mounting Type | Rail plate |
| Current Rating / Rated Current | 32 A at <= 440 VAC / 50 A at <= 440 VAC / 32 A at <= 440 VAC |
| Operating Period | Mechanical Durability 15 Mcycles / Electrical Durability 1.65 Mcycles / 32 A AC-3 at Ue <= 440 V 1.4 Mcycles 50 A AC-1 at Ue <= 440 V 1.65 Mcycles 32 A AC-3e at Ue <= 440 V |
| Warranty | 18 Months |
