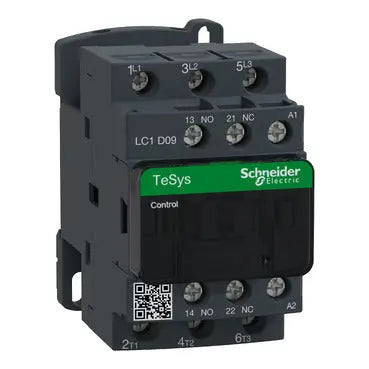

Schneider Tesys D Contactor, 3-pole, 3NO, 230VAC coil Part number LC1D09P7

This TeSys D contactor offers 3 NO poles and supports up to 9 A at 440 V AC. It operates with a 230 V AC coil and is ideal for motor control applications in small to medium systems.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x
This TeSys D contactor offers 3 NO poles and supports up to 9 A at 440 V AC. It operates with a 230 V AC coil and is ideal for motor control applications in small to medium systems.
Specifications
Specifications
x
IP RatingIP20 front face conforming to IEC 60529
Country of OriginGermany
Compliance/CertificationsCB / CCC / CSA / CSA C22.2 No 14 / DNV / EN 60947-4-1 / EN 60947-5-1 / GOST / GL / IEC 60335-1 / IEC 60947-4-1 / IEC 60947-5-1 / LROS (Lloyds register of shipping) / RINA / UL / UL 508 / UKCA / BV
Part Depth (mm)86mm
Part Width (mm)45mm
Part Height (mm)77mm
Weight (g)320g
Tightening Torque1.7 Nm
Connection Style3 Poles
Connection TypePower circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end
Rated Operating Voltage690 VAC / 300 VDC
Mounting TypeRail plate
Current Rating / Rated Current9 A at <= 440 VAC / 25 A at <= 440 VAC / 9 A at <= 440 VAC
Operating PeriodMechanical Durability 15 Mcycles / Electrical Durability 0.6 Mcycles / 25 A AC-1 at Ue <= 440 V / 2 Mcycles 9 A AC-3 at Ue <= 440 V / 2 Mcycles 9 A AC-3e at Ue <= 440 V
Warranty18 Months
