Description

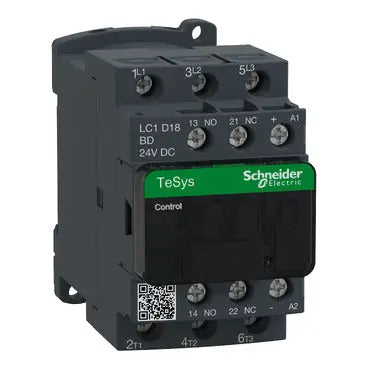

xThis TeSys D contactor is designed for motor control and resistive load applications, featuring 3 normally open poles. It operates at 25 A up to 440 V AC and has a coil voltage of 24 V DC, making it ideal for automation and control systems.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CSA C22.2 No 14 / CSA C22.2 No 60947-4-1 / EN 60947-4-1 / EN 60947-5-1 / IEC 60335-1:Clause 30.2 / IEC 60335-2-40:Annex JJ / IEC 60947-4-1 / IEC 60947-5-1 / UL 60335-2-40:Annex JJ / UL 60947-4-1 |
| Part Depth (mm) | 95mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Weight (g) | 490g |
| Packaging size / unit | 1 / 15 / 240 pc(s) |
| Tightening Torque | 1.7 Nm |
| Connection Type | Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 1 1.5 - 6 mm² - cable stiffness: flexible without cable end / Power circuit: screw clamp terminals 2 1.5 - 6 mm² - cable stiffness: flexible without cable end / Power circuit: screw clamp terminals 1 1 - 6 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 1 1.5 - 6 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 2 1.5 - 6 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / Rail |
| Current Rating / Rated Current | 18 - 32 A |
| Power Consumption | in W |
| Operating Period | 30 Mcycles (mechanical) / 1.65 Mcycles 18 A AC-3 at Ue <= 440 V / 1 Mcycles 32 A AC-1 at Ue <= 440 V / 1.65 Mcycles 18 A AC-3e at Ue <= 440 V (electrical) |
| Warranty | 18 Months |
