Schneider TeSys D Contactor, 3P(3 NO), 110V AC Coil
Schneider TeSys D Contactor, 3P(3 NO), 110V AC Coil

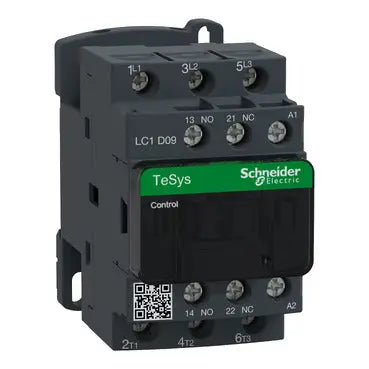

Schneider Tesys D Contactor, 3-pole, 3NO, 110VAC coil Part number LC1D09F7

This TeSys D contactor features a 3-pole design with AC-3 utilization at a rated current of 12 A for motor control applications. It supports a control circuit voltage of 110 VAC and is designed for resistive and motor loads, offering high reliability and robust performance in industrial settings.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This TeSys D contactor features a 3-pole design with AC-3 utilization at a rated current of 12 A for motor control applications. It supports a control circuit voltage of 110 VAC and is designed for resistive and motor loads, offering high reliability and robust performance in industrial settings.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsCSA C22.2 No 14 / CSA C22.2 No 60947-4-1 / EN 60947-4-1 / EN 60947-5-1 / IEC 60335-1:Clause 30.2 / IEC 60335-2-40:Annex JJ / IEC 60947-4-1 / IEC 60947-5-1 / UL 60335-2-40:Annex JJ / UL 60947-4-1
Part Depth (mm)86mm
Part Width (mm)45mm
Part Height (mm)77mm
Weight (g)320g
Packaging size / unit1 / 20 / 320 pc(s)
Tightening Torque1.7 Nm
Connection TypePower circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Power circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Power circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Power circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Power circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 4 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 4 mm² - cable stiffness: solid without cable end
Rated Operating Voltage690 VAC
Mounting TypePlate / Rail
Current Rating / Rated Current9 - 25 A
Operating Period15 Mcycles (mechanical) / 0.6 Mcycles 25 A AC-1 at Ue <= 440 V / 2 Mcycles 9 A AC-3 at Ue <= 440 V / 2 Mcycles 9 A AC-3e at Ue <= 440 V (electrical)
Warranty18 Months
Documents
Documents
x
Download Datasheet
