Description

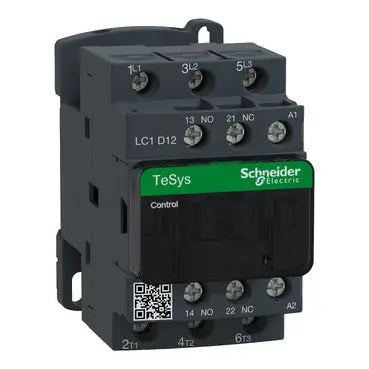

xThis TeSys D contactor offers 3 NO poles and supports up to 12 A at 440 V AC for motor control applications. It includes a 230 V AC coil and is suitable for resistive loads.
Specifications
x| IP Rating | IP20 front face conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CB / CCC / CSA C22.2 No 14 / DNV / EN 60947-4-1 / EN 60947-5-1 / GL / GOST / IEC 60335-1 / IEC 60947-4-1 / IEC 60947-5-1 / RINA / UL / UKCA / BV / LROS (Lloyds register of shipping) |
| Part Depth (mm) | 86mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Weight (g) | 325g |
| Tightening Torque | 1.7 Nm |
| Connection Type | Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 1…2.5 mm² - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 1…4 mm² - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 1…4 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC / 300 VDC |
| Mounting Type | Rail plate |
| Current Rating / Rated Current | 25 A at <= 440 VAC / 12 A at <= 440 VAC / 12 A at <= 440 VAC |
| Operating Period | Mechanical Durability 15 Mcycles / Electrical Durability 2 Mcycles / 12 A AC-3 at Ue <= 440 V 0.8 Mcycles 25 A AC-1 at Ue <= 440 V 2 Mcycles 12 A AC-3e at Ue <= 440 V |
| Warranty | 18 Months |
