Description

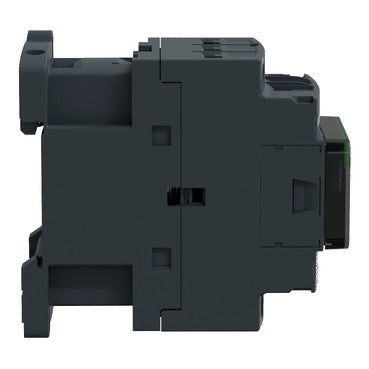

xThis TeSys D contactor is designed for motor control and resistive load applications. It features 3 NO poles, supports up to 18 A at 440 V AC, and operates with a 24 V DC coil, providing reliable switching for industrial use.
Specifications
x| IP Rating | IP20 front face IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CSA / CSA C22.2 No 14 / CB / DNV / EN 60947-4-1 / EN 60947-5-1 / GOST / GL / IEC 60335-1 / IEC 60947-4-1 / IEC 60947-5-1 / LROS (Lloyds register of shipping) / RINA / UL / UL 508 / UKCA |
| Part Depth (mm) | 95mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 77mm |
| Weight (g) | 490g |
| Tightening Torque | 1.7 Nm |
| Connection Style | 3 Poles |
| Connection Type | Control circuit: screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) - cable stiffness: flexible without cable end Control circuit: screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 2 0.00…0.00 in² (1…2.5 mm²) - cable stiffness: flexible with cable end Control circuit: screw clamp terminals 1 0.00…0.01 in² (1…4 mm²) - cable stiffness: solid without cable end Control circuit: screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) - cable stiffness: flexible without cable end Power circuit: screw clamp terminals 1 0.00…0.01 in² (1…6 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 2 0.00…0.01 in² (1…4 mm²) - cable stiffness: flexible with cable end Power circuit: screw clamp terminals 1 0.00…0.01 in² (1.5…6 mm²) - cable stiffness: solid without cable end Power circuit: screw clamp terminals 2 0.00…0.01 in² (1.5…6 mm²) - cable stiffness: solid without cable end |
| Rated Operating Voltage | 690 VAC / 300 VDC |
| Mounting Type | Rail plate |
| Current Rating / Rated Current | 18 A at <= 440 VAC / 32 A at <= 440 VAC / 18 A at <= 440 VAC |
| Operating Period | Mechanical Durability 30 Mcycles / Electrical Durability 1.65 Mcycles / 18 A AC-3 <= 440 V 1 Mcycles / 32 A AC-1 <= 440 V 1.65 Mcycles 18 A AC-3e <= 440 V |
| Warranty | 18 Months |
