Description

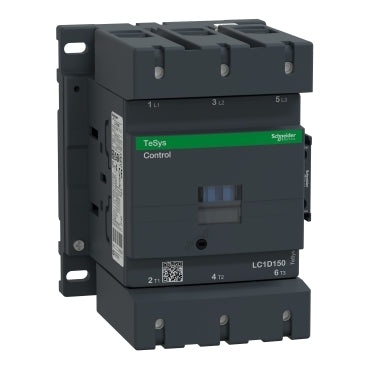

xThis high-capacity TeSys D contactor is designed for motor control, supporting up to 150 A at 440 V AC for AC-3 applications. It includes a 230 VAC coil, making it suitable for heavy industrial loads.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CSA C22.2 No 14 / CSA C22.2 No 60947-4-1 / EN 60947-4-1 / IEC 60335-1:Clause 30.2 / IEC 60335-2-40:Annex JJ / IEC 60947-4-1 / JIS C8201-4-1 / UL 60335-2-40:Annex JJ / UL 60947-4-1 |
| Part Depth (mm) | 136mm |
| Part Width (mm) | 120mm |
| Part Height (mm) | 158mm |
| Weight (g) | 2500g |
| Packaging size / unit | 1 / 27 pc(s) |
| Tightening Torque | 1.2 Nm |
| Connection Type | Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1 - 2.5 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1 - 2.5 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1 - 2.5 mm² - cable stiffness: solid without cable end / Power circuit: connector 1 10 - 120 mm² - cable stiffness: flexible without cable end / Power circuit: connector 2 10 - 50 mm² - cable stiffness: flexible without cable end / Power circuit: connector 1 10 - 120 mm² - cable stiffness: flexible with cable end / Power circuit: connector 2 10 - 50 mm² - cable stiffness: flexible with cable end / Power circuit: connector 1 10 - 120 mm² - cable stiffness: solid without cable end / Power circuit: connector 2 10 - 50 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 1000 VAC |
| Mounting Type | Plate / Rail |
| Current Rating / Rated Current | 150 - 200 A |
| Operating Period | 8 Mcycles (mechanical) / 0.85 Mcycles 150 A AC-3 at Ue <= 440 V / 1 Mcycles 200 A AC-1 at Ue <= 440 V / 0.85 Mcycles 150 A AC-3e at Ue <= 440 V (electrical) |
| Warranty | 18 Months |
