Description

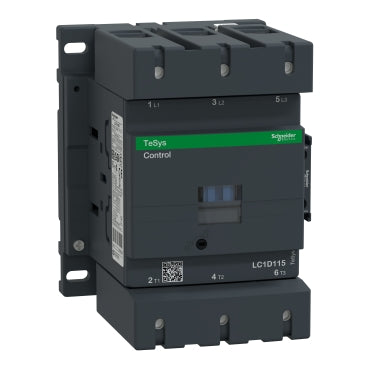

xThis contactor is designed for motor and resistive load control, operating at up to 115A and 440V in AC-3 applications. It supports three-phase motors with power ratings up to 80 kW and features a 230V AC control coil for reliable switching in industrial automation systems.
Specifications
x| IP Rating | IP20 |
| Compliance/Certifications | CCC / CE / CSA / CSA C22.2 No 14 / CSA C22.2 No 60947-4-1 / EAC / EN 60947-4-1 / IEC 60335-1 30.2 /IEC 60335-2-40:Annex JJ / IEC 60947-4-1 / JIS C8201-4-1 / Marine / UKCA / UL /UL 60335-2-40:Annex JJ / UL 60947-4-1 |
| Temperature: Operating | France |
| Temperature: Operating | -20°C to 60 °C / -20°C to 70 °C |
| Part Depth (mm) | 136mm |
| Part Width (mm) | 120mm |
| Part Height (mm) | 158mm |
| Weight (g) | 2500.0g |
| Tightening Torque | Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver flat Ø 6 mm / Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver Philips No 2 / Control circuit: 1.2 N.m - on screw clamp terminals - with screwdriver pozidriv No 2 / Power circuit: 12 N.m - on connector hexagonal screw head 4 mm |
| Connection Type | Control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 1 1-2.5 mm² - cable stiffness: solid without cable end / Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible with cable end / Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: flexible without cable end / Control circuit: screw clamp terminals 2 1-2.5 mm² - cable stiffness: solid without cable end / Power circuit: connector 1 10-120 mm² - cable stiffness: flexible with cable end / Power circuit: connector 1 10-120 mm² - cable stiffness: flexible without cable end / Power circuit: connector 1 10-120 mm² - cable stiffness: solid without cable end / Power circuit: connector 2 10-50 mm² - cable stiffness: flexible with cable end / Power circuit: connector 2 10-50 mm² - cable stiffness: flexible without cable end / Power circuit: connector 2 10-50 mm² - cable stiffness: solid without cable end |
| Rated Operating Voltage | 1000 V AC 25 - 400 Hz / 300 V DC |
| Current Rating / Rated Current | 115 A / 200 A |
| Power Consumption | in VA |
| Operating Period | 8 Mcycles (mechanical) / 0.8 Mcycles / 0.95 Mcycles (electrical) |
