Description

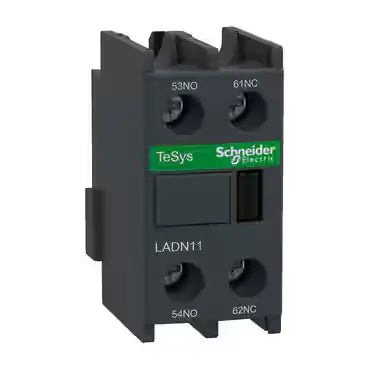

xThis auxiliary contact block from TeSys D offers 1 NO and 1 NC contact configuration. It is front-mounted and ideal for use in industrial control panels, with a rated operational voltage of up to 690 V.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | CB / CCC / CSA C22.2 No 60947-5-1 / EAC / EN/IEC 60947-5-1 / GB/T 14048.5 / UL / UKCA |
| Temperature: Operating | -5°C to 60°C |
| Part Depth (mm) | 42mm |
| Part Width (mm) | 26mm |
| Part Height (mm) | 48mm |
| Tightening Torque | 1.7 Nm |
| Connection Type | Screw clamp terminals 1 cable(s) 1…4 mm²flexible with cable end Screw clamp terminals 1 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 2 cable(s) 1…2.5 mm²flexible with cable end Screw clamp terminals 2 cable(s) 1…4 mm²flexible without cable end Screw clamp terminals 1 cable(s) 1…4 mm²rigid without cable end Screw clamp terminals 2 cable(s) 1…4 mm²rigid without cable end |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Front mounting |
| Current Rating / Rated Current | 6 A at 120 VAC / 1.04 A at 690 VAC / 0.55 A at 125 VDC / 0.1 A at 600 VDC |
| Operating Period | Mechanical Durability 30 Mcycles |
| Colour | Dark Grey |
