Schneider Terminal base, required for AS-P, 90 x 114mm Schneider Electric
Schneider Terminal base, required for AS-P, 90 x 114mm Schneider Electric

Schneider Terminal base, required for AS-P, 90 x 114mm Part number SXWTBASW110002

The TB-ASP-W1 is a terminal base for mounting AS-P and AS-P-SMK controllers within the EcoStruxure Building Operation system. It fixes to a DIN rail by claws and provides a connector for electrical termination, with a single slot accepting one controller. Rated for 24 VDC operation and IP20 protection, it is...
Vendor: Schneider Electric
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

The TB-ASP-W1 is a terminal base for mounting AS-P and AS-P-SMK controllers within the EcoStruxure Building Operation system. It fixes to a DIN rail by claws and provides a connector for electrical termination, with a single slot accepting one controller. Rated for 24 VDC operation and IP20 protection, it is intended for indoor installation within a control panel enclosure, supporting an I/O bus with up to 32 addresses.

Key specifications

  • Operating temperature: 0 to 50 °C (32–122 °F)
Specifications
Specifications
x

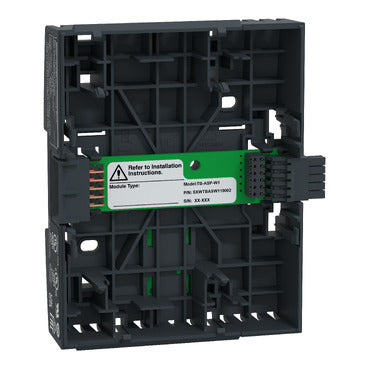

SpaceLogic Terminal Base TB-ASP-W1 – Required for AS-P

Product Overview

Part NumberSXWTBASW110002
Device Short NameTB-ASP-W1
Product TypeTerminal Base
Product BrandSchneider Electric
SeriesEcoStruxure Building Operation
Range CompatibilityAS-P Controller, AS-P-SMK Controller
Mounting SupportDIN Rail
Fixing ModeBy Claws
Electrical ConnectionConnector
Number of Slots1
Quantity per Set1

Dimensions & Weight

Height114 mm (4.5 in)
Width90 mm (3.6 in)
Depth64 mm (2.5 in)
Net Weight100.4 g (3.5 oz)

Electrical Specifications

Nominal Voltage24 VDC
Power Consumption10 W (including SmartX AS-P server)
I/O Bus Power24 VDC, max. 30 W per I/O bus power supply, Class 2
Maximum Addresses per I/O Bus32

Environmental Specifications

Operating Temperature0 to 50 °C (32–122 °F)
Storage Temperature-20 to 70 °C (-4–158 °F)
Relative Humidity0–95% Non-Condensing
Ingress Protection RatingIP20
Plastic Flame RatingUL94-5VB

Certifications & Standards

CertificationsCE, FCC Part 15 Class B, ICES-003 Class B, RCM, UL 916, UL 864, UL 294
StandardsEMCD 2014/30/EU, WEEE 2012/19/EU, RoHS 2011/65/EU and 2015/863/EU, China RoHS SJ/T 11364-2014
RoHS ComplianceCompliant with Exemptions
REACH RegulationDeclaration According to EU REACH Regulation Article 33
China RoHS RegulationCompliant
Halogen Content PerformanceHalogen Free Plastic Parts & Cables
PVC FreeYes
SCIP NumberD8ffe8b2-86f4-4096-acac-7b6a031469de

Packaging & Dimensions

Package TypePCE
Package Dimensions (H x W x L)11.6 cm x 10.6 cm x 4.2 cm
Package Weight100.4 g (3.5 oz)

Environmental Data

Carbon Footprint (Total Lifecycle)8 kg CO₂ eq
Packaging Made with Recycled CardboardYes (Minimum 70%)
Packaging Without Single Use PlasticYes
Take-Back ProgramNo
WEEE ComplianceYes
