Description

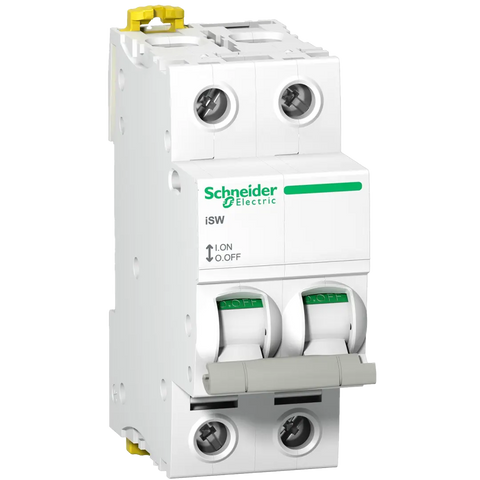

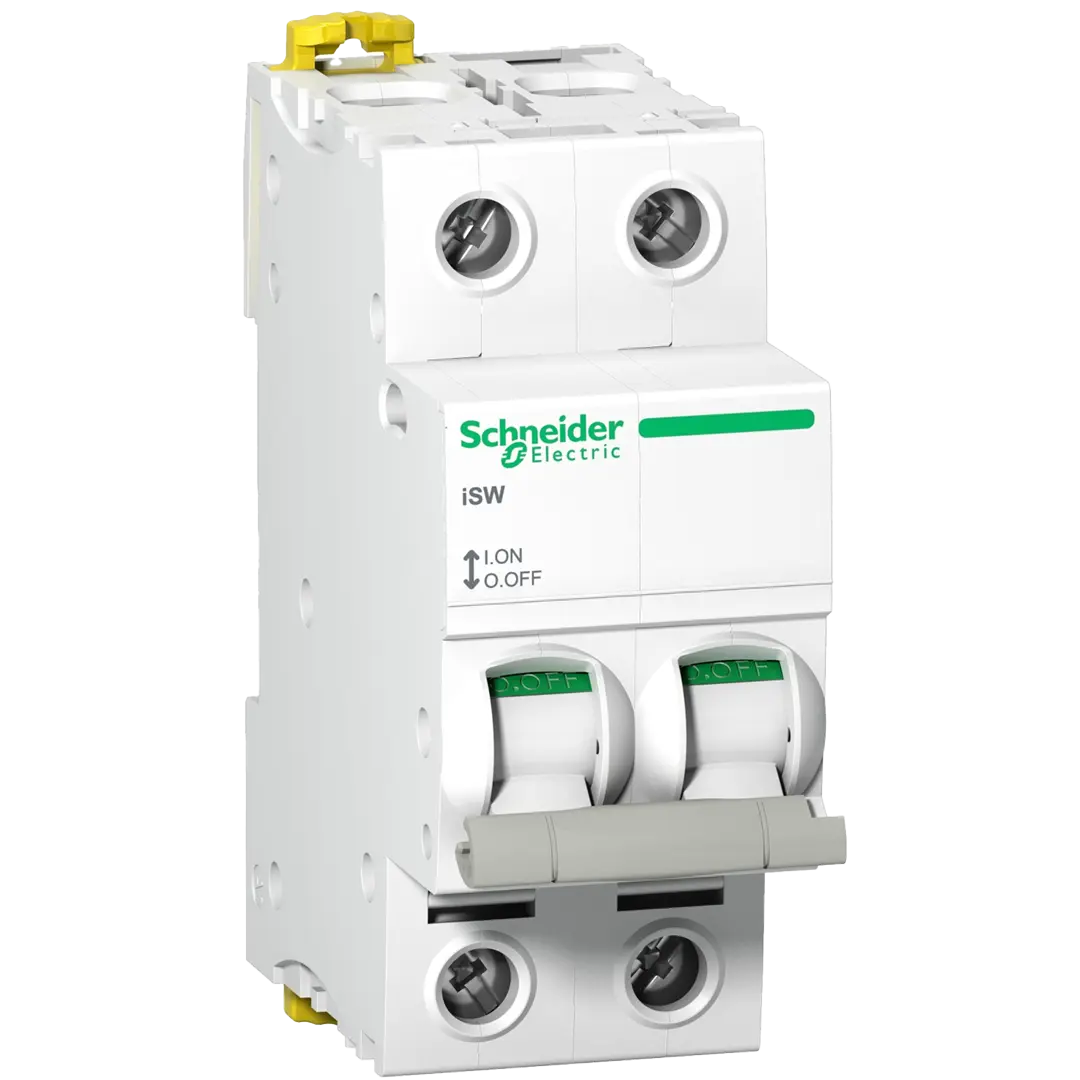

xThe switch-disconnector is to open and close supply of circuits under load. Functional unit to establish, support and interrupt for 20 years rated currents in normal conditions of circuit characterized by the current Ie 100 A, including any conditions specified for the operating voltage Ue 415 V AC and a current for short-circuit lcw 1500 A for a specified time, 2-pole and IP20
Specifications
x| IP Rating / Detailed | IP20 |
| Compliance/Certifications | IEC 60947-3,EN 60947-3 |
| Temperature: Operating | -25…60 °C |
| Part Depth (mm) | 73mm |
| Part Width (mm) | 36mm |
| Part Length (mm) | 14mm |
| Part Height (mm) | 85mm |
| Tightening Torque (N.m) | 3.5 Nm |
| Connection Type | Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid,Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible,Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule |
| Rated Operating Voltage | 415 V AC 50/60 Hz |
| Mounting Type | Fixed |
| Current Rating | 100 A at 415 V AC 50/60 Hz |
| Operating Period(Mech) | 20000 cycles |
| Operating Period(Elec) | 10000 cycles |
| Colour | White |
