Description

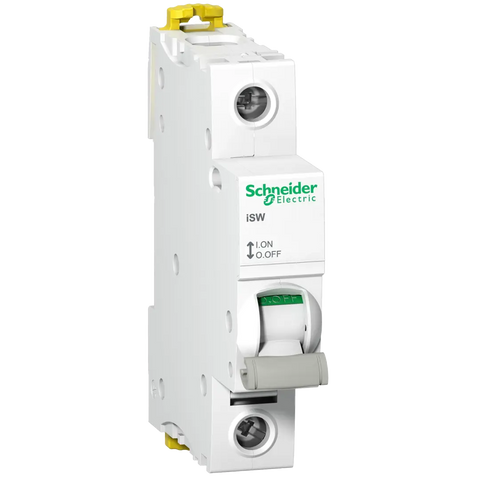

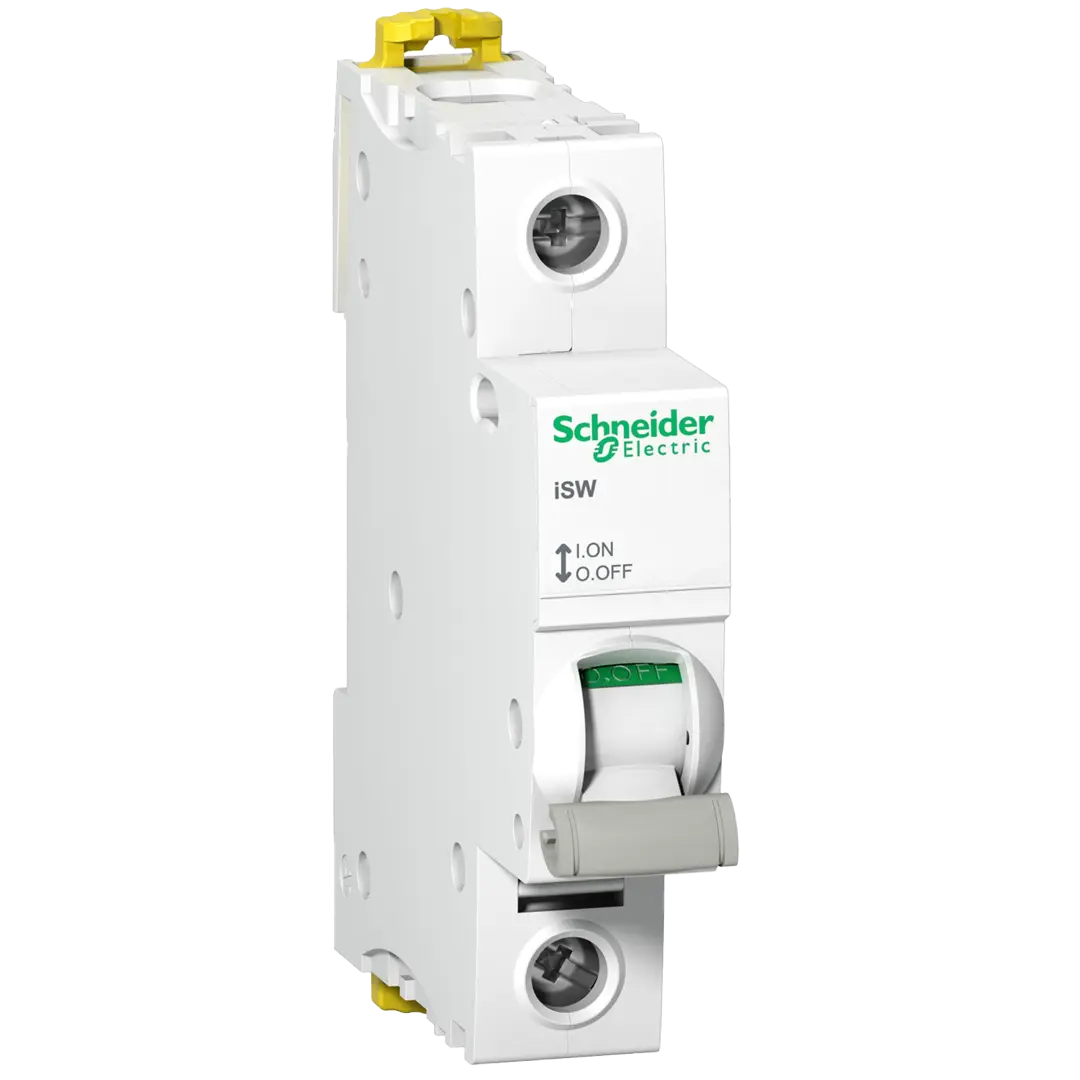

xThe iSW is a single-pole switch disconnector rated 40 A at 240 V AC 50/60 Hz, used to provide manual on-load isolation within control panels and distribution boards. It is fixed-mounted and fitted with tunnel-type terminals for rigid or flexible conductor connections, tightened to 3.5 Nm. With an IP20 rating and an operating temperature range of -25 to 60°C, it suits enclosed indoor panel applications where local circuit isolation is required.
Key specifications
- IP rating: IP20
- Rated current: 40 A at 240 V AC 50/60 Hz
- Operating temperature: -25…60 °C
- Colour: White
- Mounting: Fixed
Specifications
x| IP Rating / Detailed | IP20 |
| Compliance/Certifications | IEC 60947-3,EN 60947-3 |
| Temperature: Operating | -25…60 °C |
| Part Depth (mm) | 73mm |
| Part Width (mm) | 18mm |
| Part Length (mm) | 14mm |
| Part Height (mm) | 85mm |
| Tightening Torque (N.m) | 3.5 Nm |
| Connection Type | Tunnel type terminals (top or bottom) - <= 1 x 50 mm² - rigid,Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible,Tunnel type terminals (top or bottom) - <= 1 x 35 mm² - flexible with ferrule |
| Rated Operating Voltage | 240 V AC 50/60 Hz |
| Mounting Type | Fixed |
| Current Rating | 40 A at 240 V AC 50/60 Hz |
| Operating Period(Mech) | 20000 cycles |
| Operating Period(Elec) | 15000 cycles |
| Colour | White |
