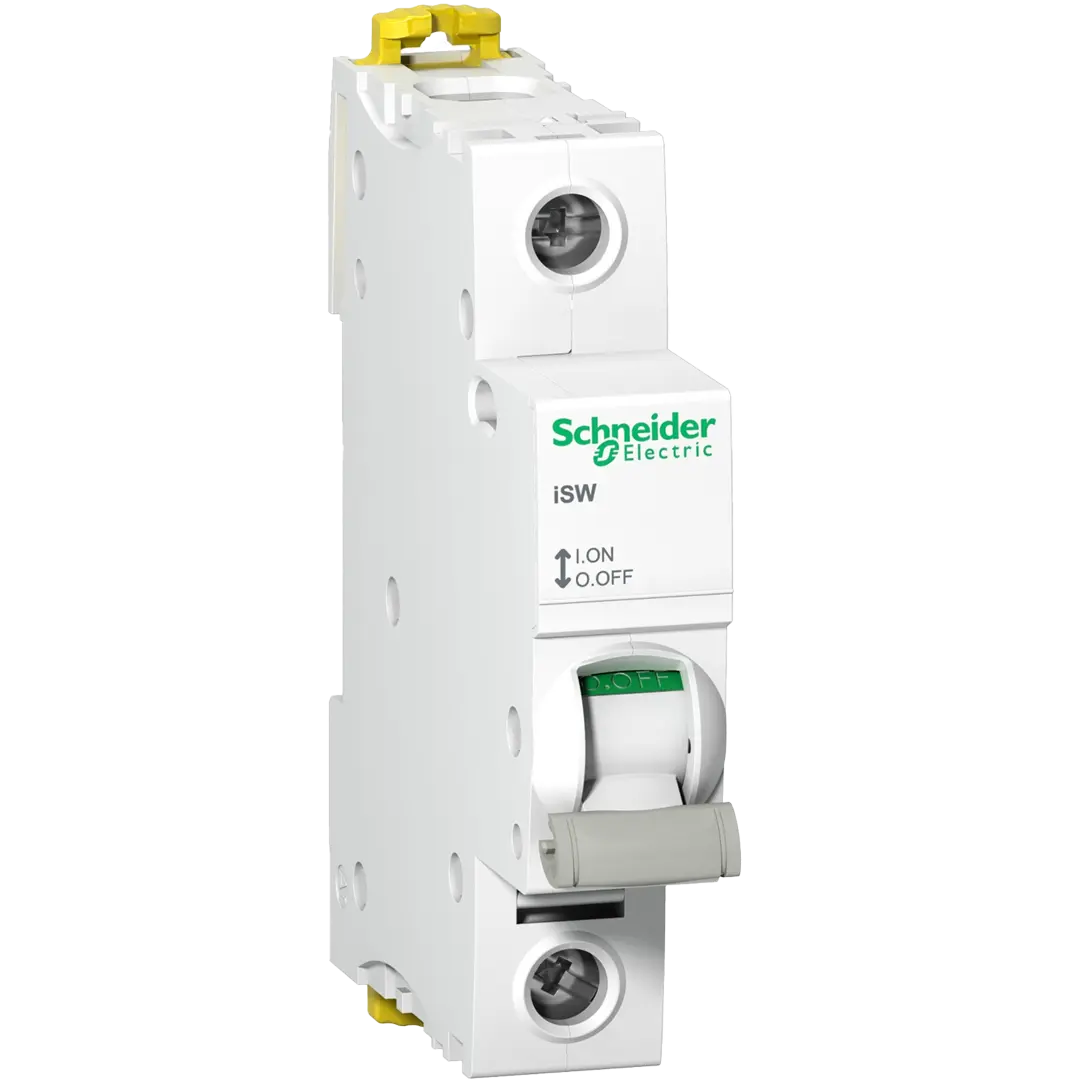

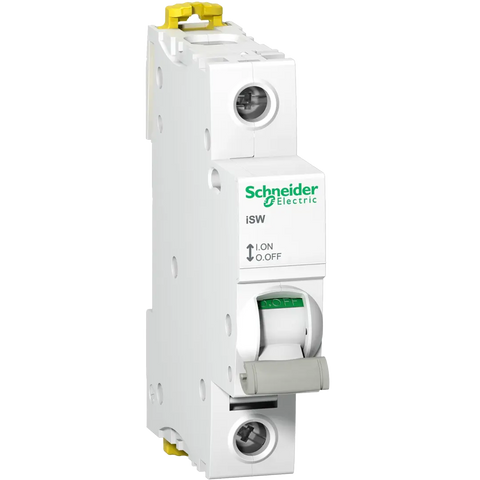

Schneider Switch Disconnector iSW - 1P - 125 A - 240 V Part number A9S65192

The switch-disconnector is to open and close supply of circuits under load. Functional unit to establish, support and interrupt for 20 years rated currents in normal conditions of circuit characterized by the current Ie 125 A, including any conditions specified for the operating voltage Ue 240 V AC and a...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
The switch-disconnector is to open and close supply of circuits under load. Functional unit to establish, support and interrupt for 20 years rated currents in normal conditions of circuit characterized by the current Ie 125 A, including any conditions specified for the operating voltage Ue 240 V AC and a current for short-circuit lcw 1500 A for a specified time, 1-pole and IP20.
Specifications
Specifications
x
RangeActi9
Product nameActi9 iSW
Product or component typeSwitch disconnector
Device short nameiSW
Device applicationControl Isolation
Poles description1P
Utilisation categoryAC-22A
Suitability for isolationYes
[Ie] rated operational current125 A at 240 V AC 50/60 Hz
[Ue] rated operational voltage240 V AC 50/60 Hz
[Icm] rated short-circuit making5 kA switch-disconnector alone
[Icw] rated short-time withstand1500 A
[Ui] rated insulation voltage250 V AC 50/60 Hz
[Uimp] rated impulse withstand6 kV
Control typeToggle
Local signallingON/OFF indication
Contact position indicatorYes
Mounting modeFixed
Mounting supportDIN rail
Comb busbar and distributionTop or bottom: YES
9 mm pitches2
Height85 mm
width18 mm
Depth73 mm
ColourWhite
Mechanical durability20000 cycles
Electrical durability2500 cycles
