Description

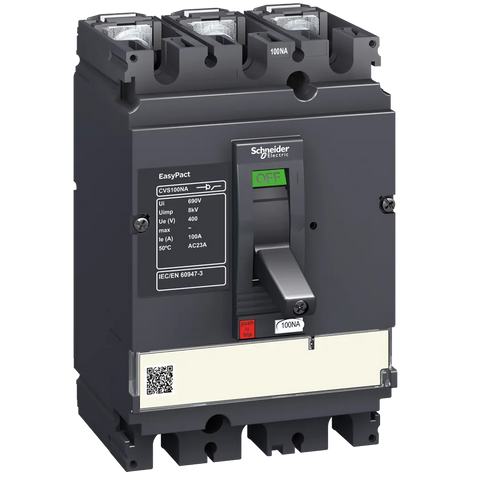

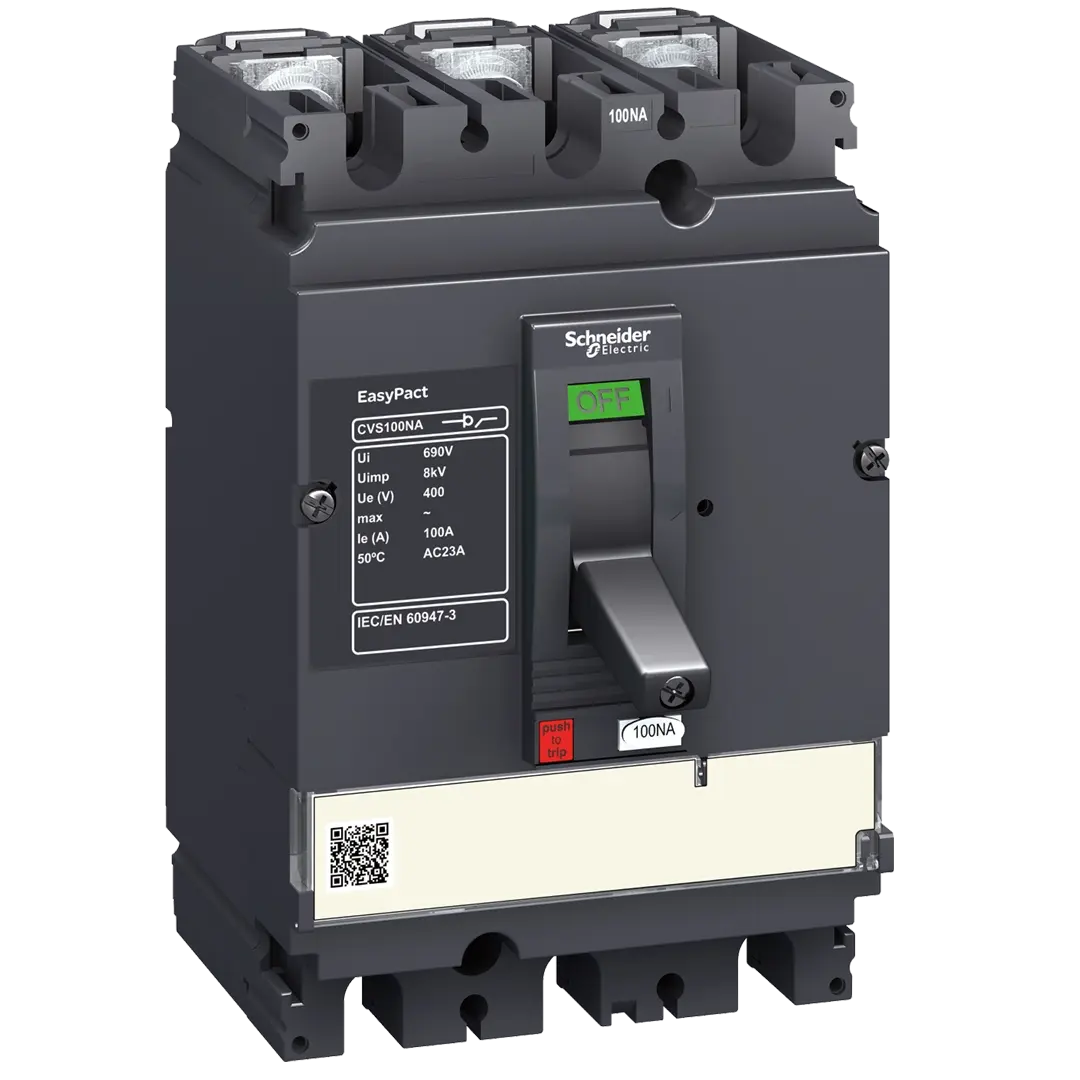

xA switch capable of making, carrying and breaking currents under normal circuit conditions and which, in the open position, complies with the isolating requirements specified for a disconnector. This product has a rated operational current of up to AC-23A: 100 A AC 50/60 Hz 440 V. [Icm] rated short-circuit making capacity of up to 2.6 kA switch-disconnector alone. Electrical durability of up to AC-23A: 8000 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3. The product consists of 3 Poles.
Specifications
x| Compliance/Certifications | IEC 60947-3,EN 60947-3 |
| Temperature: Operating | -25…70 °C |
| Part Depth (mm) | 86mm |
| Part Width (mm) | 105mm |
| Part Height (mm) | 161mm |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC |
| Mounting Type | Fixed |
| Current Rating | AC-22A: 100 A AC 50/60 Hz 220/240 V,AC-22A: 100 A AC 50/60 Hz 380/415 V,AC-22A: 100 A AC 50/60 Hz 440 V,AC-23A: 100 A AC 50/60 Hz 220/240 V,AC-23A: 100 A AC 50/60 Hz 380/415 V,AC-23A: 100 A AC 50/60 Hz 440 V |
| Operating Period(Mech) | 30000 cycles conforming to IEC 60947-3 |
| Operating Period(Elec) | AC-22A: 8000 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3,AC-23A: 8000 cycles 415 V AC 50/60 Hz In conforming to IEC 60947-3 |
