Description

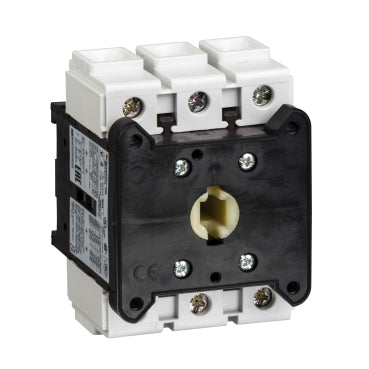

xThis switch-disconnector is designed for high-performance switching in industrial applications. With 3 poles and a rated operational current of 63 A, it is ideal for isolating circuits in machinery and control panels.
Specifications
x| Compliance/Certifications | CSA / GL / IEC 60947-3 / UKCA / UL |
| Temperature: Operating | -20°C to 50 °C |
| Part Depth (mm) | 65mm |
| Part Width (mm) | 60mm |
| Part Height (mm) | 83mm |
| Packaging size / unit | 1 / 12 / 192 pc(s) |
| Tightening Torque | 4 Nm |
| Max Frequency | 50/60 Hz |
| Type of Voltage | DC / AC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / Symmetrical rail |
| Current Rating / Rated Current | 41.5 A |
| Operating Period | 30000 cycles (mechanical) / 30000 cycles AC-21 / 30000 cycles DC-1 - 5 (electrical) |
| Warranty | 18 Months |
