Description

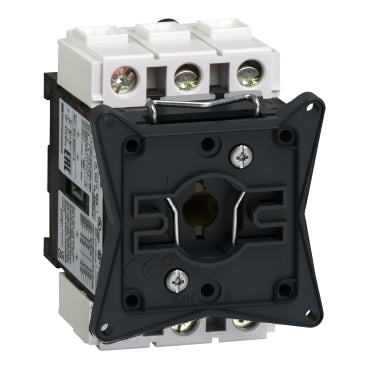

xThis emergency stop switch disconnector provides reliable isolation for industrial control systems, ensuring operator safety. It is equipped with a robust handle and durable construction, suitable for harsh environments.
Specifications
x| Compliance/Certifications | CCC / CSA / GL / IEC 60947-3 / UKCA / UL |
| Temperature: Operating | -20°C to 50 °C |
| Part Depth (mm) | 60mm |
| Part Width (mm) | 55mm |
| Part Height (mm) | 74mm |
| Packaging size / unit | 1 / 24 / 192 pc(s) |
| Tightening Torque | 2.1 Nm |
| Max Frequency | 50/60 Hz |
| Type of Voltage | AC / DC |
| Rated Operating Voltage | 690 VAC |
| Mounting Type | Plate / Symmetrical rail |
| Current Rating / Rated Current | 11 A |
| Operating Period | 100000 cycles (mechanical) / 100000 cycles AC-21 / 30000 cycles DC-1 - 5 (electrical) |
| Warranty | 18 Months |
