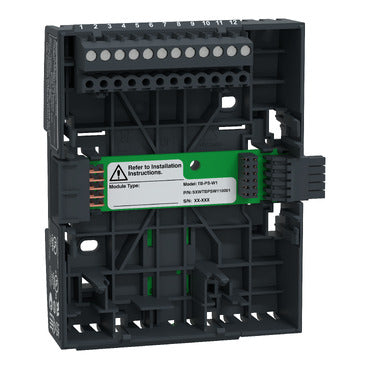

Schneider Spacelogic Terminal base required for power supply module Part number SXWTBPSW110001

The TB-PS-W1 is a terminal base for mounting a PS-24V power supply module within the EcoStruxure Building Operation system. It fits a DIN rail and is secured by claws, providing a single-slot internal electrical connection point for the power supply module. With an IP20 rating and an operating temperature range...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

The TB-PS-W1 is a terminal base for mounting a PS-24V power supply module within the EcoStruxure Building Operation system. It fits a DIN rail and is secured by claws, providing a single-slot internal electrical connection point for the power supply module. With an IP20 rating and an operating temperature range of 0 to 50°C, it is intended for use inside enclosed control panels.

Key specifications

  • Operating temperature: 0 to 50 °C (32–122 °F)
Specifications
Specifications
x
Part NumberSXWTBPSW110001
Device Short NameTB-PS-W1
Product TypeTerminal Base
Product BrandSchneider Electric
SeriesEcoStruxure Building Operation
Range CompatibilityPS-24V Power Supply Module
Mounting SupportDIN Rail
Fixing ModeBy Claws
Electrical ConnectionInternal
Number of Slots1
Quantity per Set1
Height114 mm
Width90 mm
Depth64 mm
Net Weight122.6 g
Operating Temperature0 to 50 °C (32–122 °F)
Storage Temperature-20 to 70 °C (-4–158 °F)
Relative Humidity0–95% Non-Condensing
Ingress Protection RatingIP20
Plastic Flame RatingUL94-5VB
CertificationsCE, FCC Part 15 Class B, RCM, UL 916, UL 864
StandardsEN 61000-6-2, EN 61000-6-3, EN 60730-1, EN 60730-2-11
RoHS ComplianceCompliant with Exemptions
REACH RegulationDeclaration According to EU REACH Regulation Article 33
China RoHS RegulationCompliant
Halogen Content PerformanceHalogen Free Plastic Parts & Cables
PVC FreeYes
SCIP NumberD8ffe8b2-86f4-4096-acac-7b6a031469de
Package TypePCE
Package Dimensions (H x W x L)10.5 cm x 4.5 cm x 11.8 cm
Package Weight122.6 g
Carbon Footprint (Total Lifecycle)8 kg CO₂ eq
Packaging Made with Recycled CardboardYes (Minimum 70%)
Packaging Without Single Use PlasticYes
WEEE ComplianceYes
