Schneider SpaceLogic Controller I/O module, 12 digital outputs Part number SXWDOA12X10001

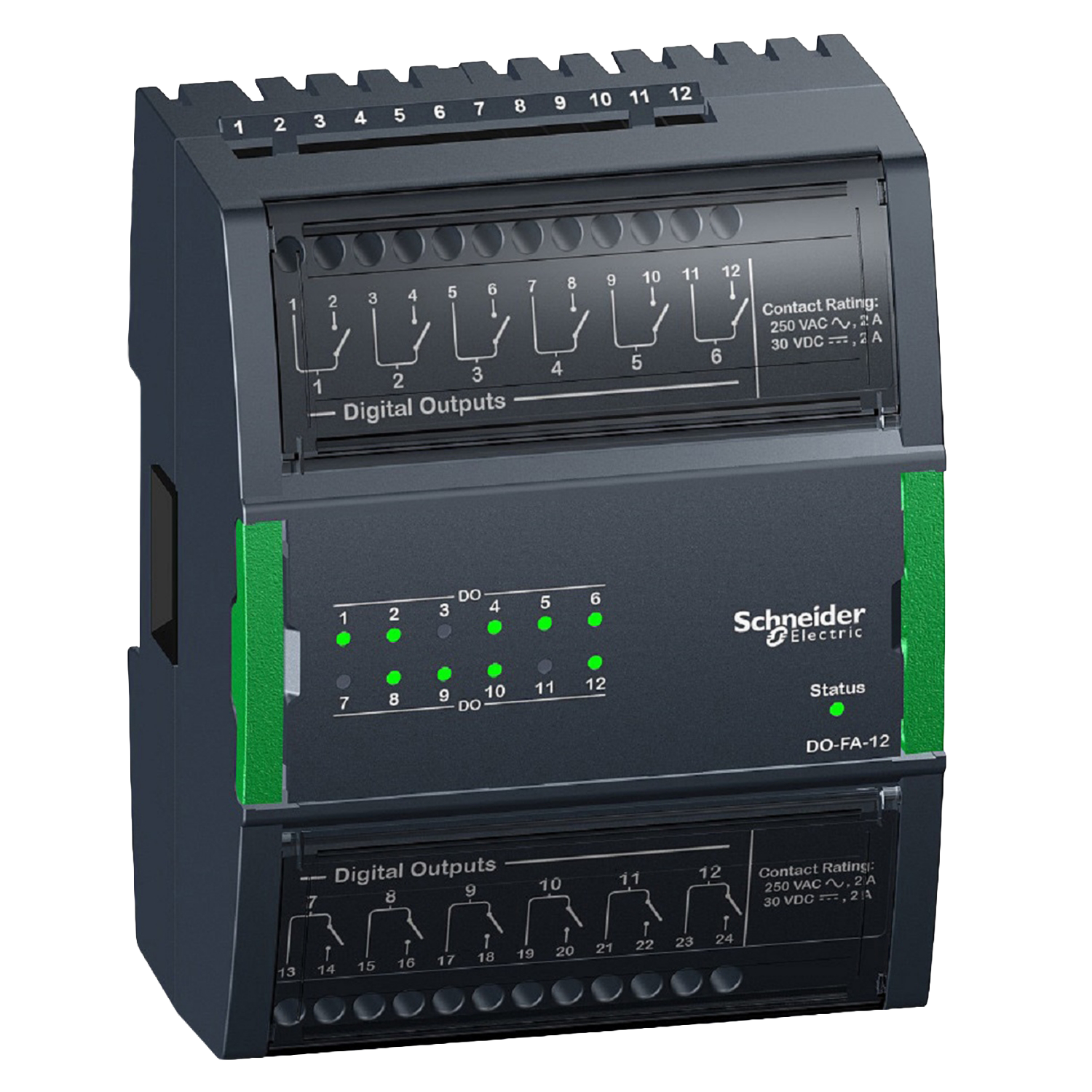

The SpaceLogic DO-FA-12 is an I/O module providing 12 relay discrete outputs, forming part of the EcoStruxure Building Operation series. It connects via a plug-in sub-base to the TB-IO-W1 terminal base and supports DIN rail or wall mounting, with a green LED indicating relay energisation on each output. Operating from...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

The SpaceLogic DO-FA-12 is an I/O module providing 12 relay discrete outputs, forming part of the EcoStruxure Building Operation series. It connects via a plug-in sub-base to the TB-IO-W1 terminal base and supports DIN rail or wall mounting, with a green LED indicating relay energisation on each output. Operating from a 24 V supply with power consumption of 1.8 W, it is rated IP20 for use within control panels in building automation applications.

Key specifications

  • Operating temperature: 0–50 °C (32–122 °F)
  • Material: ABS + PC
Specifications
Specifications
x
Part NumberSXWDOA12X10001
Device Short NameDO-FA-12
Product TypeI/O Module
SeriesEcoStruxure Building Operation
Mounting SupportDIN Rail, Wall
Electrical ConnectionPlug-in Sub-base
Control TypeWithout
Discrete Output Number12
Discrete Output TypeRelay
Discrete Input Voltage24 V
Local SignallingLED (green) for relay energized
Range CompatibilityEcoStruxure Building Operation TB-IO-W1 Terminal Base
Height114 mm (4.5 in)
Width30 mm (1.2 in)
Depth64 mm (2.5 in)
Net Weight194 g (6.8 oz)
Operating Temperature0–50 °C (32–122 °F)
Storage Temperature-20–70 °C (-4–158 °F)
Relative Humidity0–95% Non-Condensing
IP Degree of ProtectionIP20
MaterialABS + PC
Flame RetardanceUL94V0-5VB
CertificationsICES-003, FCC Part 15 Class B, CE, RCM
StandardsUL 864, UL 916, FCC CFR 47 Part 15
RoHS ComplianceCompliant with Exemptions
SCIP Number08bd611f-8419-43db-ad4e-34d847346717
REACH RegulationDeclaration According to EU REACH Regulation Article 33
China RoHS RegulationCompliant
Halogen Content PerformanceHalogen Free Plastic Parts & Cables
PVC FreeYes
Power Consumption1.8 W
Package TypePCE
Package Dimensions (H x W x L)14 cm x 9 cm x 6 cm
Package Weight200 g (7.05 oz)
Carbon Footprint (Total Lifecycle)72 kg CO₂ eq
Packaging Made with Recycled CardboardYes (Minimum 70%)
Packaging Without Single Use PlasticYes
WEEE ComplianceYes
