Description

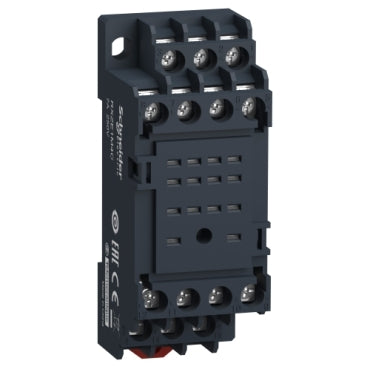

xThis socket supports RXM relays with 2 or 4 CO contacts, offering screw clamp terminals and a 7 A thermal current capacity. It is designed for mounting on panels or DIN rails, ensuring flexibility in industrial setups.
Specifications
x| Compliance/Certifications | IEC 61984 |
| Temperature: Operating | -40°C to 55 °C |
| Part Width (mm) | 29mm |
| Weight (g) | 53g |
| Packaging size / unit | 1 / 10 / 270 pc(s) |
| Tightening Torque | 0.8 Nm |
| Connection Type | Screw clamp terminals / 1 x 0.2 - 1 x 1.0 mm² (AWG 24 - AWG 17) flexible with cable end / Screw clamp terminals / 2 x 0.2 - 2 x 1.0 mm² (AWG 24 - AWG 17) flexible with cable end / Screw clamp terminals / 1 x 0.5 - 1 x 1.5 mm² (AWG 20 - AWG 16) solid without cable end / Screw clamp terminals / 2 x 0.5 - 2 x 1.5 mm² (AWG 20 - AWG 16) solid without cable end |
| Rated Operating Voltage | 250 VAC |
