Description

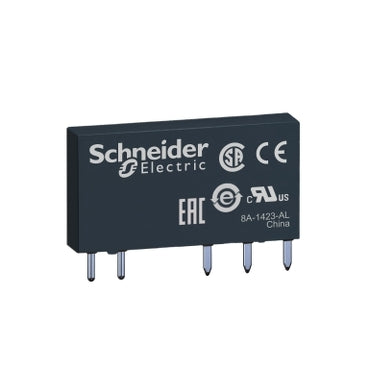

xThis is a slim plug-in interface relay with a single changeover (1 C/O) contact, rated 24VDC and 6A, using silver alloy (AgSnO2) contacts. Its narrow 5mm width suits high-density mounting in control panels where multiple relays are arranged side by side, and the IP40 enclosure provides basic protection against solid objects. The stated operating temperature range of -40 to 55°C makes it suitable for use in environments with wide ambient temperature variation.
Key specifications
- IP rating: IP40 conforming to IEC 60529
- Rated current: 6 A (AC-1/DC-1) conforming to IEC/UL
- Operating temperature: -40…55 °C
Specifications
x| IP Rating / Detailed | IP40 conforming to IEC 60529 |
| Compliance/Certifications | CSA C22.2 No 14,IEC 61810-1,UL 508 |
| Temperature: Operating | -40…55 °C |
| Part Depth (mm) | 18.5mm |
| Part Width (mm) | 5mm |
| Part Height (mm) | 28mm |
| Material: Product | Silver alloy (AgSnO2) |
| Connection Style | 1 C/O |
| Rated Operating Voltage | limits |
| Interface | plug-in |
| Current Rating | 6 A (AC-1/DC-1) conforming to IEC/UL |
| Operating Period(Mech) | 10000000 cycles |
| Operating Period(Elec) | 60000 cycles, 6 A at 250 V, AC-1 C/O |
