Description

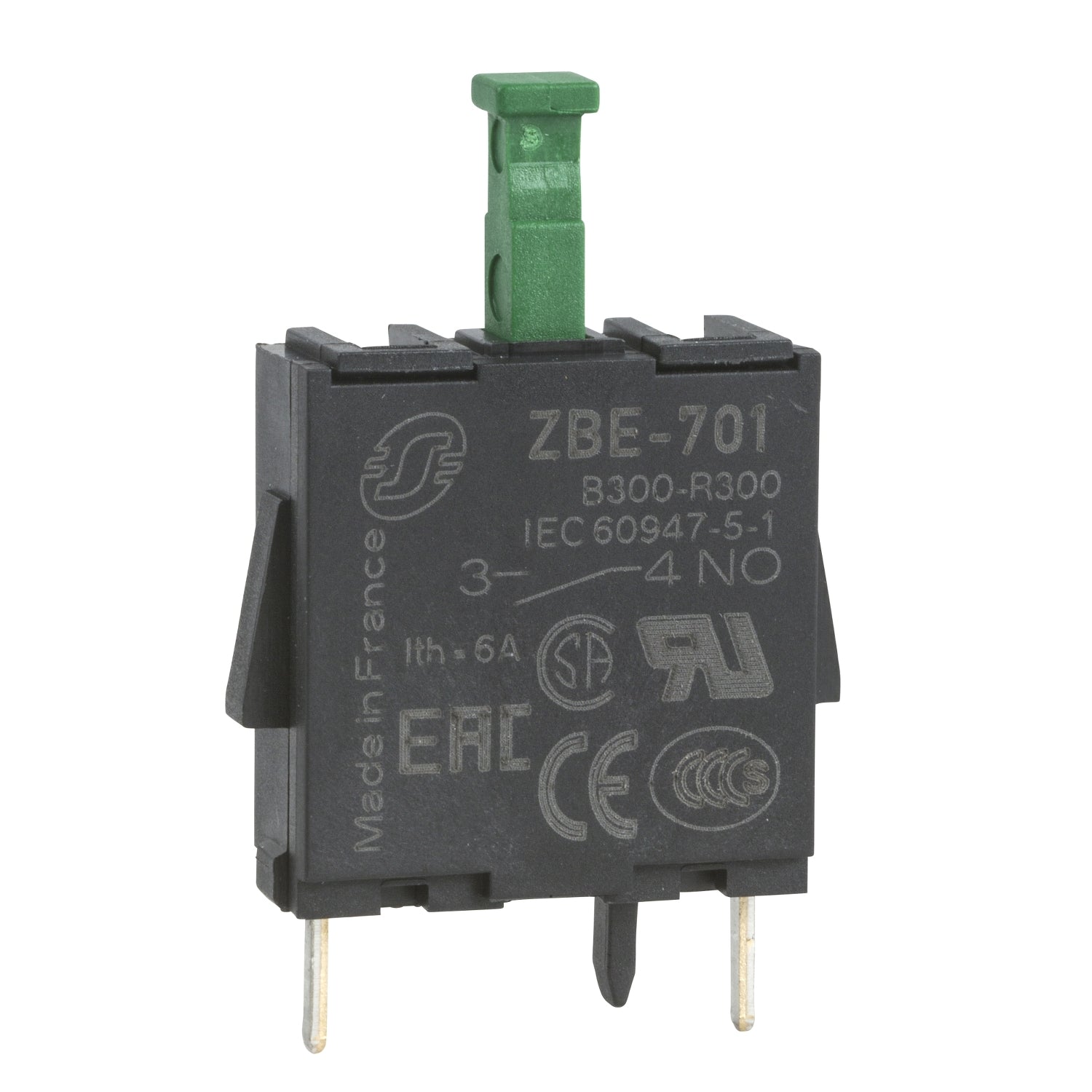

xThis contact block provides a single normally open (1NO) contact with silver alloy (Ag/Ni) construction, intended for mounting to a printed circuit board via pin connections. It is rated IP20 and suited to operating temperatures from -25 to 70 °C, making it appropriate for use within enclosed control panels and automation switchgear. Current ratings are defined for both AC-15 and DC-13 duty at various voltages, allowing selection according to the switching load of the control circuit.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Pins for printed circuit board
- Operating temperature: -25…70 °C
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-5-1,IEC 60947-1,UL 508,IEC 60947-5-4,JIS C8201-5-1,CSA C22.2 No 14,JIS C8201-1 |
| Temperature: Operating | -25…70 °C |
| Weight (g) | 11.0g |
| Material: Product | Silver alloy (Ag/Ni) |
| Connection Style | 1 NO |
| Connection Type | Pins for printed circuit board |
| Current Rating | 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1,1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1,0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1,0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1 |
| Operating Period(Mech) | 5000000 cycles |
