Description

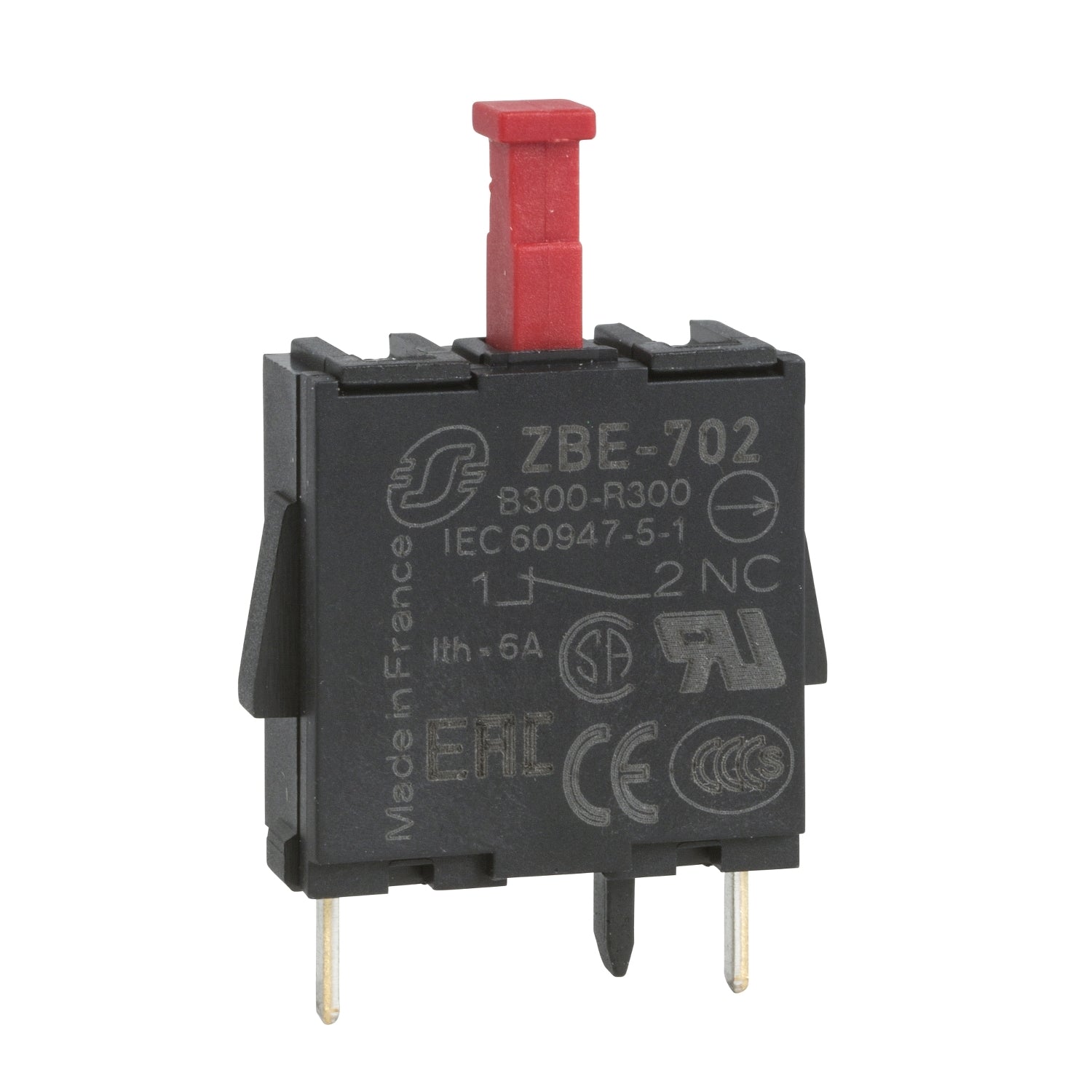

xThis single contact block provides one normally closed (1NC) contact for use with pushbutton or switch operators in control panel assemblies. Its pins are designed for direct connection to printed circuit boards, and the silver alloy (Ag/Ni) contacts are rated for defined AC and DC switching duties as specified under IEC 60947-5-1. With an IP20 rating and an operating temperature range of -25 to 70°C, it is suited to standard indoor industrial control applications.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Connection: Pins for printed circuit board
- Operating temperature: -25…70 °C
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-5-4,JIS C8201-5-1,UL 508,IEC 60947-5-1,CSA C22.2 No 14,IEC 60947-1,JIS C8201-1 |
| Temperature: Operating | -25…70 °C |
| Weight (g) | 11.0g |
| Material: Product | Silver alloy (Ag/Ni) |
| Connection Style | 1 NC |
| Connection Type | Pins for printed circuit board |
| Current Rating | 3 A at 120 V, AC-15, B300 conforming to IEC 60947-5-1,1.5 A at 240 V, AC-15, B300 conforming to IEC 60947-5-1,0.1 A at 250 V, DC-13, R300 conforming to IEC 60947-5-1,0.22 A at 125 V, DC-13, R300 conforming to IEC 60947-5-1 |
| Operating Period(Mech) | 5000000 cycles |
