Description

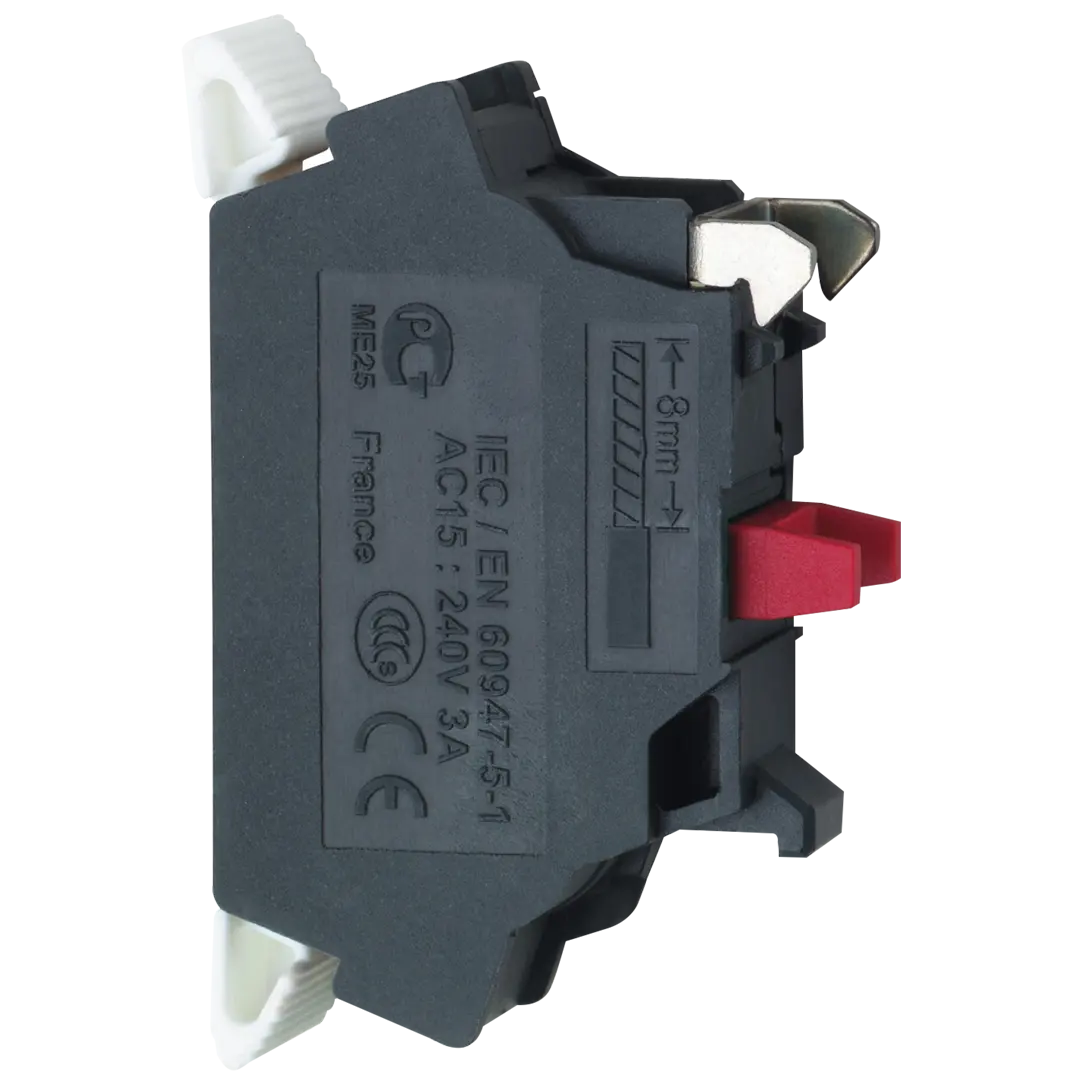

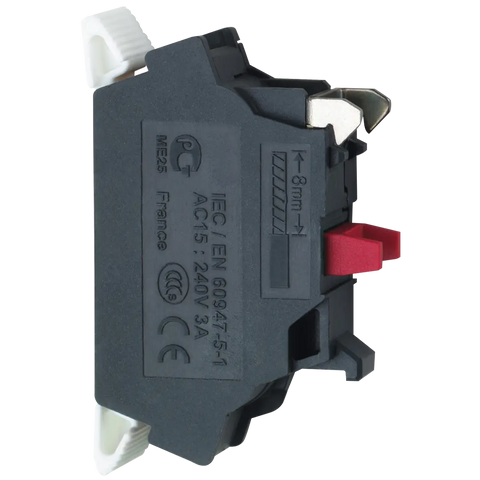

xIlluminated metallic complete unit with contact function. It combines simplicity of installation, flexibility, and robustness. It meets the requirements of the majority of industrial applications. Contact block has a slow-break, 4 sale quantity, standard contacts usage, spring clamp terminals and a single contact block. Switch ON/OFF 10A electrical contact, and/or provide visual signaling for 20 years with 0.5W power consumption at 30% use rate.
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | IEC 60947-1,IEC 60947-5-1,IEC 60947-5-4,IEC 60947-5-5,UL 60947-1,UL 60947-5-1,UL 60947-5-5,UL 1059,UL 486E,CSA C22.2 No 60947-1,CSA C22.2 No 60947-5-1,CSA C22.2 No 158,CSA C22.2 No 65,IACS E10 |
| Temperature: Operating | -40…70 °C |
| Part Depth (mm) | 9.8mm |
| Part Width (mm) | 34.3mm |
| Part Height (mm) | 14.8mm |
| Material: Product | Silver alloy (Ag/Ni) |
| Connection Style | 1 NC |
| Connection Type | Push-in, <= 2 x 1.5 mm² with wire end ferrule conforming to IEC 60947-1,Push-in, >= 1 x 0.34 mm² without wire end ferrule conforming to IEC 60947-1 |
| Current Rating | 6 A at 120 V, AC-15, A300 conforming to IEC 60947-5-1,3 A at 240 V, AC-15, A300 conforming to IEC 60947-5-1,0.55 A at 125 V, DC-13, Q300 conforming to IEC 60947-5-1,0.27 A at 250 V, DC-13, Q300 conforming to IEC 60947-5-1 |
| Operating Period(Mech) | 10000000 cycles |
