Description

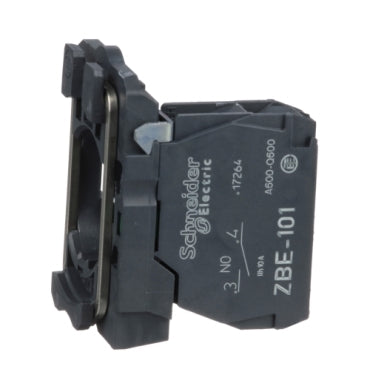

xThis single NO contact block with body and fixing collar, part of the Harmony XB5 range, ensures consistent operation and is compatible with a wide range of push-button heads.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / JIS C8201-1 CSA / JIS C8201-5-1 / LROS (Lloyds Register of Shipping) / UL / UL 508 |
| Temperature: Operating | -40°C to 70 °C |
| Part Depth (mm) | 32mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 42mm |
| Weight (g) | 21g |
| Material: Product | Silver alloy (Ag/Ni) |
| Screw Type | Cross compatible with Philips no 1 screwdriver Cross compatible with pozidriv No 1 screwdriver Slotted compatible with flat Ø 4 mm screwdriver Slotted compatible with flat Ø 5.5 mm screwdriver |
| Connection Style | 1 NO |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to EN 60947-1 / Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to EN 60947-1 |
| Operating Period | 10000000 cycles |
| Warranty | 18 Months |
