Description

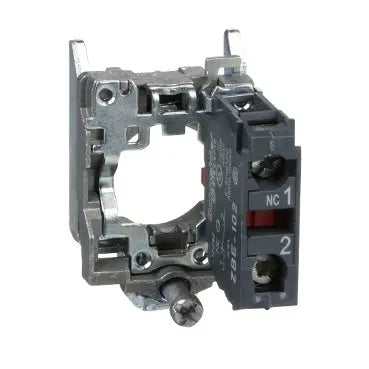

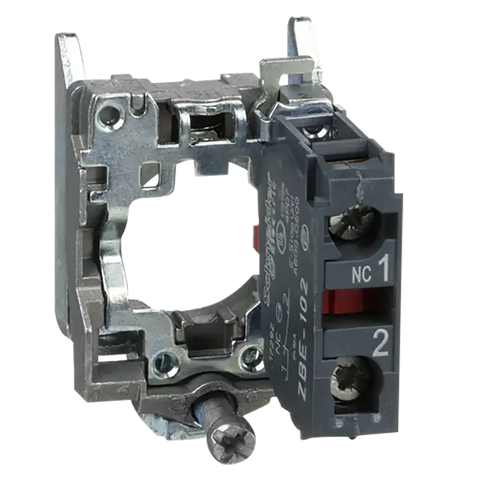

xThis single contact block from the Harmony XB4 series features a metal body and fixing collar, designed for 22.5 mm diameter mounting. It includes 1 NC slow-break contact with screw clamp terminals, providing reliable operation for industrial control panels.
Specifications
x| IP Rating | IP20 conforming to IEC 60529 |
| Country of Origin | Germany |
| Compliance/Certifications | BV / CSA / CSA C22.2 No 14 / DNV / GL / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-4 / IEC 60947-5-5 / JIS C8201-1 / JIS C8201-5-1 / LROS (Lloyds register of shipping) / UL 508 |
| Temperature: Operating | -40°C to 70°C |
| Part Depth (mm) | 37mm |
| Part Width (mm) | 30mm |
| Part Height (mm) | 47mm |
| Weight (g) | 53g |
| Packaging size / unit | 1 pc(s) |
| Tightening Torque | 0.8 - 1.2 Nm |
| Material: Product | Silver Alloy |
| Connection Style | 1 NC |
| Connection Type | Screw clamp terminals, <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 Screw clamp terminals, >= 1 x 0.22 mm² without cable end conforming to IEC 60947-1 |
| Current Rating / Rated Current | 3 A at 240 V / 6 A at 120 V / 0.1 A at 600 V / 0.27 A at 250 V / 0.55 A at 125 V / 1.2 A at 600 V |
| Operating Period | 5000000 cycles (Mechanical) / 10000000 cycles, AC-15, 2 A at 230 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C / \n10000000 cycles, AC-15, 3 A at 120 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to IEC 60947-5-1 appendix C / \n10000000 cycles, AC-15, 4 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5\nconforming to IEC 60947-5-1 appendix C / \n10000000 cycles, DC-13, 0.2 A at 110 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C / \n10000000 cycles, DC-13, 0.5 A at 24 V, operating rate <3600 cyc/h, load factor: 0.5 conforming to IEC 60947-5-1 appendix C (Electrical) |
| Warranty | 18 Months |
