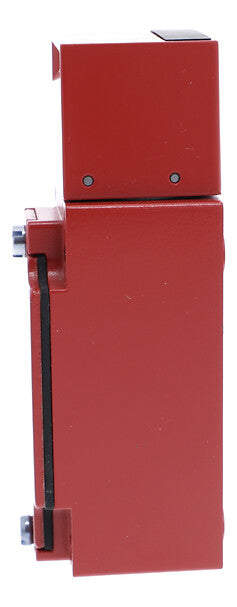

Schneider Safety switch, 1 entry, M20, 2NC + 1NO Schneider Electric
Schneider Safety switch, 1 entry, M20, 2NC + 1NO Schneider Electric

Schneider Safety switch, 1 entry, M20, 2NC + 1NO Part number XCSA702

This safety switch provides one entry with M20 connection and contact configuration of 2NC plus 1NO, used for monitoring guard doors and access points in industrial machinery. The normally closed contacts serve the safety monitoring circuit whilst the normally open contact can provide status or signalling feedback. It is typically...
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Field Sensing & Connectivity
Please hurry! Only 0 left in stock
Description
Description
x

This safety switch provides one entry with M20 connection and contact configuration of 2NC plus 1NO, used for monitoring guard doors and access points in industrial machinery. The normally closed contacts serve the safety monitoring circuit whilst the normally open contact can provide status or signalling feedback. It is typically installed on control panels and machine enclosures as part of a safety interlocking system.

Specifications
Specifications
x
XCS-A702XCS-A702
Product datasheetXCSA702
Positive openingWith NC contact
Mechanical durability>= 1000000 cycles
Minimum actuation speed0.01 m/s
Maximum actuation speed0.5 m/s
[Ithe] conventional enclosedthermal current 10 A
[Ui] rated insulation voltage500 V conforming to EN/IEC 60947-1 300 V conforming to UL 508 300 V conforming to CSA C22.2 No 14
[Uimp] rated impulse withstandvoltage 6 kV conforming to EN/IEC 60947-5-1
Short-circuit protection10 A cartridge fuse type gG (gl)
Actuator force for extraction>= 20 N
Operating rate10 cyc/mn for maximum durability
Safety reliability dataB10d = 5000000 (value given for a life time of 20 years limited by mechanical or contact wear)
Body materialZamak
Head materialZamak
Depth44 mm
Height114 mm
Width40 mm
Product weight0.44 kg 1 / 2
standardsEN 1088/ISO 14119 EN/IEC 60204-1 EN/IEC 60947-5-1 EN/ISO 12100 UL 508 CSA C22.2 No 14
product certificationsCSA UL
protective treatmentTC
ambient air temperature foroperation -25...70 °C
vibration resistance5 gn (f = 10...500 Hz) conforming to IEC 60068-2-6
shock resistance10 gn for 11 ms conforming to IEC 60068-2-27
electrical shock protection classClass I conforming to EN/IEC 61140
IP degree of protectionIP67 conforming to EN/IEC 60529 and EN/IEC 60947-5-1
