Description

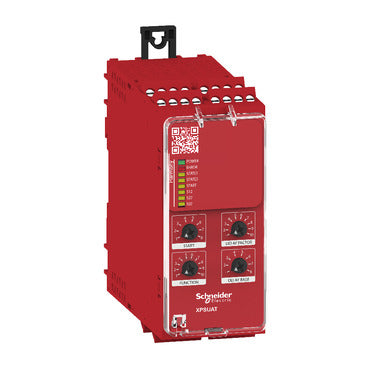

xThis safety relay module provides reliable monitoring and control for emergency stop functions, ensuring enhanced safety in industrial environments.
Specifications
x| IP Rating | IP20 / IP40 / IP54 |
| Compliance/Certifications | IEC 60947-5-1 / IEC 61508-1 Functional Safety Standard / IEC 61508-2 Functional Safety Standard / IEC 61508-3 Functional Safety Standard / IEC 61508-4 Functional Safety Standard / IEC 61508-5 Functional Safety Standard / IEC 61508-6 Functional Safety Standard / IEC 61508-7 Functional Safety Standard / IEC 62061 Functional Safety Standard / ISO 13849-1 Functional Safety Standard / TÜV / cULus |
| Part Depth (mm) | 120mm |
| Part Width (mm) | 45mm |
| Part Height (mm) | 100mm |
| Weight (g) | 350g |
| Packaging size / unit | 1 / 16 / 128 pc(s) |
| Connection Type | Removable screw terminal block / 0.2 - 2.5 mm² solid or flexible / Removable screw terminal block / 0.25 - 2.5 mm² flexible with ferrule single conductor / Removable screw terminal block / 0.2 - 1.5 mm² solid or flexible twin conductor / Removable screw terminal block / 2 x 0.25 - 1 mm² flexible with ferrule without cable end / with bezel / Removable screw terminal block / 2 x 0.5 - 1.5 mm² flexible with ferrule with cable end / with bezel |
| Supply Voltage | 24 VAC - 15 - 10 % |
| Mounting Type | 35 mm symmetrical DIN rail |
| Power Consumption | 3 W 24 VDC / 6.5 VA 24VAC 50/60 Hz |
