Description

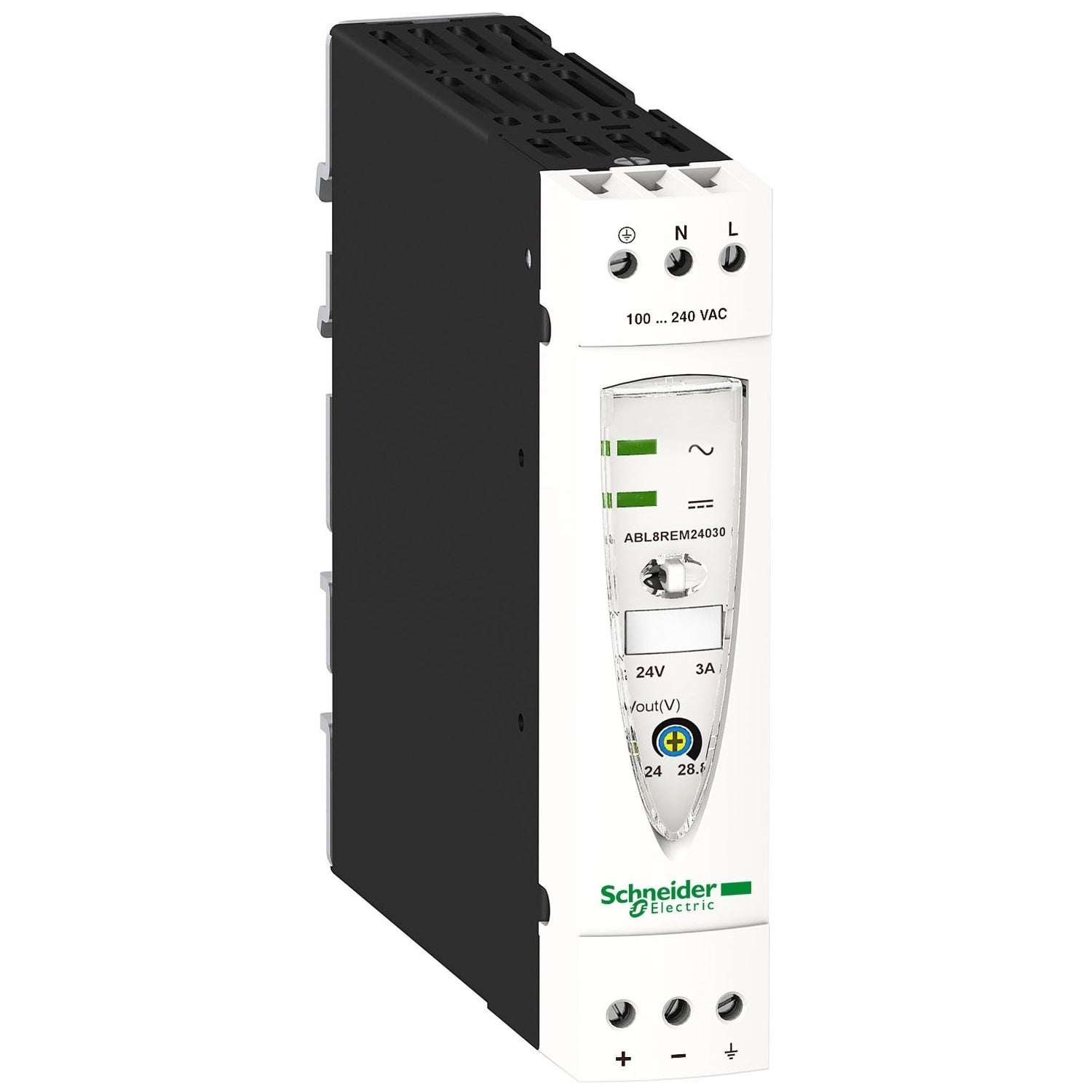

xThis Schneider Electric power supply converts incoming AC mains to a regulated 24VDC output at 3A for use in control panels and automation enclosures. It carries an IP20 rating to IEC 60529, with compliance to UL 508, CSA C22.2 No 60950-1 and EN/IEC 62368-1, making it suitable for use within enclosed panel environments. Input, output and ground connections are made via screw-type terminals, and the unit is rated for operation from 0…50 °C without derating in mounting position A, with derating applied between 50…60 °C. Its compact housing dimensions suit DIN rail or panel mounting within control cabinets.
Key specifications
- IP rating: IP20 conforming to IEC 60529
- Operating temperature: 0…50 °C without derating mounting position A 50…60 °C with derating factor mounting position A < 2000 m
Specifications
x| IP Rating / Detailed | IP20 conforming to IEC 60529 |
| Compliance/Certifications | UL 508,CSA C22.2 No 60950-1,EN/IEC 62368-1 |
| Temperature: Operating | 0…50 °C without derating mounting position A < 2000 m 50…60 °C with derating factor mounting position A < 2000 m |
| Part Depth (mm) | 120mm |
| Part Width (mm) | 27mm |
| Part Height (mm) | 120mm |
| Connection Type | Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for input connection,Screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for input ground connection,Screw type terminals: 2 x 0.14...2 x 2.5 mm², (AWG 26...AWG 14) for output connection,Screw type terminals: 1 x 0.14...1 x 2.5 mm², (AWG 26...AWG 14) for output ground connection |
| Current Consumption | 0.83 A 240 V AC |
