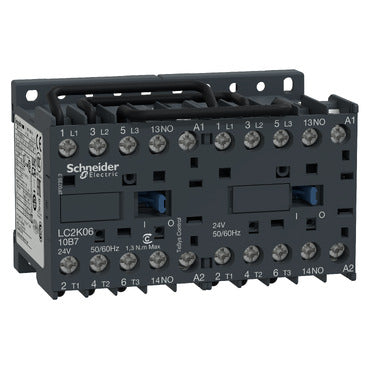

Schneider Reversing contactor, 3-pole, 1NO, 9A, 24VAC coil Schneider Electric
Schneider Reversing contactor, 3-pole, 1NO, 9A, 24VAC coil Schneider Electric

Schneider Reversing contactor, 3-pole, 1NO, 9A, 24VAC coil Part number LC2K0910B7

This Schneider Electric product is a reversing contactor. It connects via Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable...
Vendor: Schneider Electric
Availability: In stock
Product type: Control Panel
Please hurry! Only 1 left in stock
Description
Description
x

This Schneider Electric product is a reversing contactor. It connects via Screw clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end. The housing is rated IP20 conforming to VDE 0106 and the unit is specified for -25…50 °C.

Key specifications

  • IP rating: IP20 conforming to VDE 0106
  • Operating temperature: -25…50 °C
Specifications
Specifications
x
IP Rating / DetailedIP20 conforming to VDE 0106
Compliance/CertificationsEN/IEC 60947-4-1,GB/T 14048.4,UL 60947-4-1,CSA C22.2 No 60947-4-1,JIS C8201-4-1
Temperature: Operating-25…50 °C
Part Depth (mm)57mm
Part Width (mm)90mm
Part Height (mm)58mm
Connection TypeScrew clamp terminals 1 cable(s) 1.5…4 mm²solid,Screw clamp terminals 1 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 1 cable(s) 0.34…2.5 mm²flexible with cable end,Screw clamp terminals 2 cable(s) 1.5…4 mm²solid,Screw clamp terminals 2 cable(s) 0.75…4 mm²flexible without cable end,Screw clamp terminals 2 cable(s) 0.34…1.5 mm²flexible with cable end
Rated Operating VoltagePower circuit: 690 V AC 50/60 Hz
Current Rating9 A (at <60 °C) at <= 440 V AC AC-3 for power circuit,9 A (at <60 °C) at <= 440 V AC AC-3e for power circuit,20 A (at <60 °C) at <= 690 V AC AC-1 for power circuit
Power Consumptionin VA
Operating Period(Mech)5 Mcycles
Operating Period(Elec)1.3 Mcycles 9 A AC-3 at Ue <= 440 V,1.3 Mcycles 9 A AC-3e at Ue <= 440 V,0.16 Mcycles 20 A AC-1 at Ue <= 690 V,0.02 Mcycles 54 A AC-4 at Ue <= 440 V
Documents
Documents
x
Download Datasheet
