Description

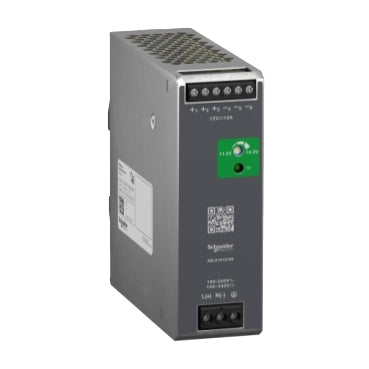

xThis regulated power supply delivers 12 V DC at 10 A, featuring an aluminum enclosure and high efficiency. It provides protections against overload, short circuits, and overvoltage, suitable for control and industrial systems.
Specifications
x| IP Rating / Detailed | IP20 |
| Compliance/Certifications | IEC 62368-1,EN/IEC 61010-1,EN 61010-2-201,EN/IEC 61204-3,IEC 61000-6-1,IEC 61000-6-2,IEC 61000-6-3,IEC 61000-6-4,IEC 61000-3-2,EN 61000-3-3,UL 62368-1,UL 61010-1,UL 61010-2-201,CSA C22.2 No 62368-1,CSA C22.2 No 61010-1,CSA C22.2 No 61010-2-201,EN/IEC 62368-1 |
| Temperature: Operating | -20…-10 °C with current derating of 2 % per °C mounting position A < 2000 m -10…40 °C without derating mounting position A 115 V AC < 2000 m -10…50 °C without derating mounting position A 230 V AC < 2000 m 40…70 °C with current derating of 1.67 % per °C mounting position A 115 V AC < 2000 m 50…70 °C with current derating of 2.5 % per °C mounting position A 230 V AC < 2000 m |
| Part Depth (mm) | 117.6mm |
| Part Width (mm) | 40mm |
| Part Height (mm) | 123.6mm |
| Communication | , industrial and control |
| Connection Type | Screw connection: 0.5...4 mm², (AWG 20...AWG 12) without wire end ferrule for output,Screw connection: 0.5...2.5 mm², (AWG 20...AWG 14) with wire end ferrule for output,Screw connection: 0.75...4 mm², (AWG 18...AWG 12) without wire end ferrule for input,Screw connection: 0.75...4 mm², (AWG 18...AWG 12) with wire end ferrule for input |
| Max Frequency | 50…60 Hz |
| Voltage Range | in line at 25 °C |
| Current Consumption | < 2.5 A 115 V AC |
