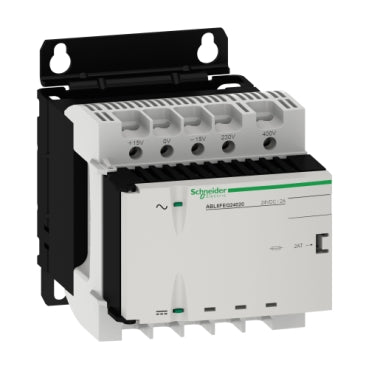

Schneider Rectified and filtered power supply, 1 or 2 phase, 24V, 2A

This rectified and filtered power supply delivers 24 V DC at 2 A. It operates with single or two-phase 400 V AC input, offering overload and overvoltage protection with built-in fuses for enhanced reliability.
Vendor: Schneider Electric
SKU: ABL8FEQ24020
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This rectified and filtered power supply delivers 24 V DC at 2 A. It operates with single or two-phase 400 V AC input, offering overload and overvoltage protection with built-in fuses for enhanced reliability.
Specifications
Specifications
x
IP Rating / DetailedIP20 conforming to IEC 60529
Temperature: Operating-20…60 °C
Part Depth (mm)141.0mm
Part Width (mm)87mm
Part Height (mm)108mm
Connection TypeFor input connection: screw type terminals, connection capacity: 5 x 2.5...5 x 4 mm² AWG 14...AWG 11,For input ground connection: screw type terminals, connection capacity: 1 x 2.5...1 x 4 mm² AWG 14...AWG 11,For output connection: screw type terminals, connection capacity: 4 x 2.5...4 x 4 mm² AWG 14...AWG 11
Max Frequencylimits
Documents
Documents
x
Download Datasheet
