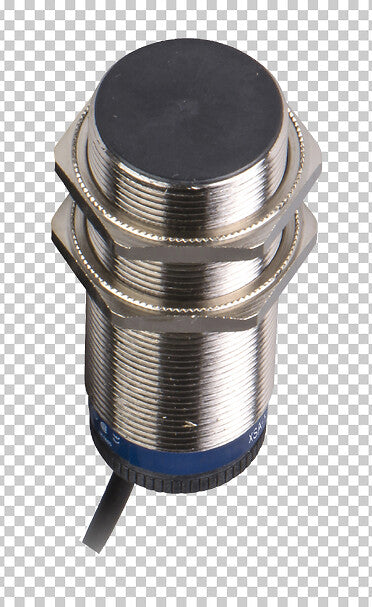

Schneider Proximity detector, M30, 10mm range Part number XSAV11373

This M30 inductive proximity detector monitors rotation, with a sensing distance of 10 mm and a speed range of 6 to 150 cycles per minute, making it suitable for detecting shaft or gear movement in rotating machinery. The brass housing and IP67 rating allow use in dusty or wet industrial environments across an ambient temperature range of -25°C to +70°C. It operates on 12–48 VDC, provides a discrete output, and is fitted with a 2 metre cable for connection into panel or machine control circuits.

Key specifications

• Operating voltage: 12–48 VDC
• Dimensions: Diameter 30 mm (M30)
• Material: Metal (Brass)
