Schneider Pre-wired connector, female, 3-pin, 2m Part number XZCP1865L2

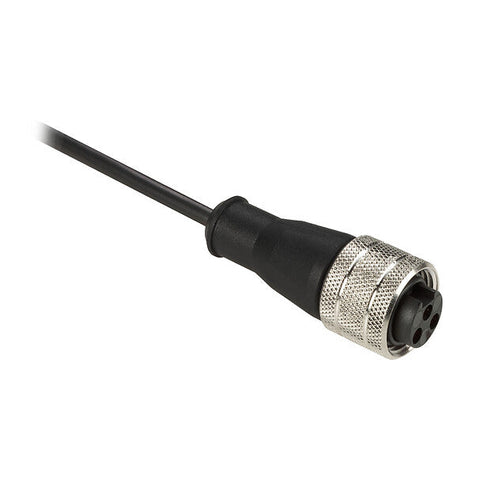

This is a female connector, factory-wired with 3 pins and a 2 metre lead, intended for control panel applications. It provides a ready-made connection point, reducing the need for on-site wiring and termination. Typical use involves linking field devices or panel components where a fixed-length, pre-terminated cable is required.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: In stock
Product type: Control Panel
Please hurry! Only 2 left in stock
Description
Description
x

This is a female connector, factory-wired with 3 pins and a 2 metre lead, intended for control panel applications. It provides a ready-made connection point, reducing the need for on-site wiring and termination. Typical use involves linking field devices or panel components where a fixed-length, pre-terminated cable is required.

Specifications
Specifications
x
Product data sheetXZCP1865L2
Electrical connectionStraight female connector 1/2"20 UNF, 3 pins
Cable connector fixingScrew-on
Collar materialMetal
Status LEDWithout
Cable length2 m
Cable outer diameter5.2 mm
Cable composition3 x 0.34 mm²
Wire insulation materialPUR
[Ue] rated operational voltage250 V AC 300 V DC
[In] rated current4 A
Contact resistance5000 µOhm
Minimum insulating resistance1 GΩ
Net weight0.08 kg
IP degree of protectionIP67
Product certificationscULus
Ambient air temperature foroperation -35…90 °C static -5…90 °C flexing
Dec 18, 20241
Packaging without single use plasticNo
Packaging made with recycledcardboard No
SCIP Number9c47f75a-89e2-4730-9b39-ee9526ec30c6
Unit Type of Package 1PCE
Number of Units in Package1 1
Package 1 Height3.4 cm
Package 1 Width16.6 cm
Package 1 Length16.6 cm
Package 1 Weight60.0 g
Unit Type of Package 2S02
Package 2 Height15 cm
Package 2 Width30 cm
Package 2 Length40 cm
Package 2 Weight2.855 kg
