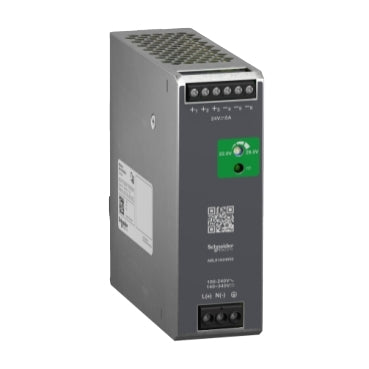

Schneider Power supply, 1-phase, optimized, 24VDC, 5A Part number ABLS1A24050

This regulated power supply delivers 24 V DC at 5 A with high efficiency. It features an aluminum enclosure, adjustable output, and protection against overload, overvoltage, and temperature variations.
Vendor: Schneider Electric
Rubicon Industrial Technology is an authorised South African distributor for Schneider Electric.
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x
This regulated power supply delivers 24 V DC at 5 A with high efficiency. It features an aluminum enclosure, adjustable output, and protection against overload, overvoltage, and temperature variations.
Specifications
Specifications
x
IP RatingIP20
Compliance/CertificationsCSA C22.2 No 107.1 / CSA C22.2 No 62368-1 / EN 61000-3-3 / EN/IEC 61204-3 / EN/IEC 62368-1 / IEC 61000-3-2 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 / IEC 61000-6-4 / IEC 62368-1 / UL 508 / UL 62368-1
Temperature: Operating-20 to -10 °C with current derating of 2 % per °C mounting position A < 2000m / -10°C to 40 °C without derating mounting position A 115 VAC < 2000m / -10°C to 50 °C without derating mounting position A 230 VAC < 2000m / 40°C to 70 °C with current derating of 1.67 % per °C mounting position A 115 VAC < 2000m / 50°C to 70 °C with current derating of 2.5 % per °C mounting position A 230 VAC < 2000m
Part Depth (mm)117.6mm
Part Width (mm)40mm
Part Height (mm)123.6mm
Weight (g)550g
Packaging size / unit1 / 13 / 312 pc(s)
Connection TypeScrew connection: 0.5 - 4 mm² / (AWG 20 - AWG 12) without wire end ferrule for output / Screw connection: 0.5 - 2.5 mm² / (AWG 20 - AWG 14) with wire end ferrule for output / Screw connection: 0.75 - 4 mm² / (AWG 18 - AWG 12) without wire end ferrule for input / Screw connection: 0.75 - 4 mm² / (AWG 18 - AWG 12) with wire end ferrule for input
Max Frequency50/60 Hz
Mounting TypeTop hat type TH35-15 rail conforming to IEC 60715 / Top hat type TH35-7.5 rail conforming to IEC 60715 / Double-profile DIN rail
Current Consumption< 1.3 A 140 VDC / < 1.4 A 230 VAC / < 2.5 A 115 VAC
Power Consumption< 1.3 A 140 VDC / < 1.4 A 230 VAC / < 2.5 A 115 VAC
