Description

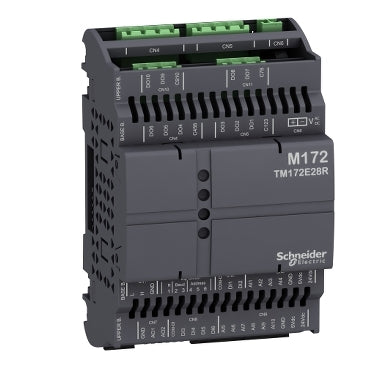

xThis expansion module adds 28 I/Os to a Schneider control system, extending the number of inputs and outputs available for connected field devices. It operates from a 24 V AC supply and carries an IP20 rating, suiting installation inside enclosed control panels. Rated for operation between -20°C and 65°C, it is intended for automation applications requiring additional I/O capacity beyond the base controller.
Key specifications
- IP rating: IP20
- Operating temperature: -20…65 °C conforming to UL 60730-1
Specifications
x| IP Rating / Detailed | IP20 |
| Compliance/Certifications | IEC 61000-4-4,EN 60068-2-27,CSA E60730-2-9,IEC 61000-4-11,CAN/CSA-E60730-1,UL 60730-2-9,EN 60730-2-9,EN 60730-1,IEC 61000-4-5,IEC 61000-4-3,EN 60068-2-6 Fc,IEC 61000-4-2,UL94 (material V0) |
| Temperature: Operating | -20…65 °C conforming to UL 60730-1 |
| Part Depth (mm) | 59mm |
| Part Width (mm) | 72mm |
| Part Height (mm) | 110mm |
| Supply Voltage | 24 V +/- 10 % AC |
| Power Consumption | in W |
