Description

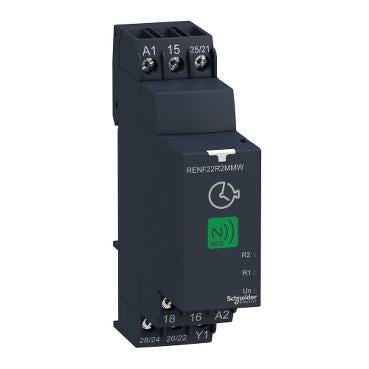

xThis mechanical relay delivers reliable switching for control applications. It features a compact design with high durability and supports a wide range of voltages, ensuring operational efficiency.
Specifications
x| IP Rating | IP20 / IP40 |
| Compliance/Certifications | CCC / CE / CSA / DNV-GL / EAC / EN 61812-1 / IEC 61000-6-1 / IEC 61000-6-2 / IEC 61000-6-3 / IEC 61000-6-4 / KC / UL |
| Temperature: Operating | -20°C to 60 °C |
| Part Width (mm) | 22.5mm |
| Weight (g) | 90.4g |
| Packaging size / unit | 1 / 40 / 640 pc(s) |
| Tightening Torque | 0.6 - 1 Nm |
| Connection Type | Screw terminals / 1 x 0.5 - 1 x 3.3 mm² (AWG 20 - AWG 12) solid without cable end / Screw terminals / 2 x 0.5 - 2 x 2.5 mm² (AWG 20 - AWG 14) solid without cable end / Screw terminals / 1 x 0.2 - 1 x 2.5 mm² (AWG 24 - AWG 14) flexible with cable end / Screw terminals / 2 x 0.2 - 2 x 1.5 mm² (AWG 24 - AWG 16) flexible with cable end |
| Supply Voltage | 24 / 240 VAC/DC |
| Voltage Range | 0.85 / 1.1 Un |
| Operating Period | 10000000 cycles (mechanical) / 100000 cycles for resistive load / 8 A at 250 V / AC (electrical) |
