Description

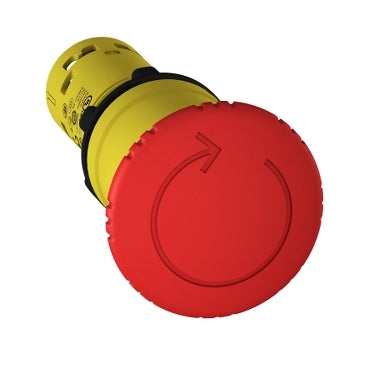

xThis emergency stop pushbutton ensures reliable safety operation, featuring a prominent red head and robust build for critical control applications.
Specifications
x| IP Rating | IP20 / IP65 |
| Compliance/Certifications | CCC / CSA C22.2 No 14 / GOST / IEC 60204-1 / IEC 60364-5-53 / IEC 60947-1 / IEC 60947-5-1 / IEC 60947-5-5 / ISO 13850 / UL 508 |
| Temperature: Operating | -25 °C to 70 °C |
| Part Depth (mm) | 72mm |
| Part Width (mm) | 40mm |
| Part Height (mm) | 40mm |
| Weight (g) | 35g |
| Packaging size / unit | 1 / 10 / 50 pc(s) |
| Tightening Torque | 0.8 - 1.2 Nm |
| Screw Type | Cross compatible with JIS No 1 screwdriver / Cross compatible with Philips no 1 screwdriver / Cross compatible with pozidriv No 1 screwdriver / Slotted compatible with flat Ø 4 mm screwdriver / Slotted compatible with flat Ø 5.5 mm screwdriver |
| Communication | 1 NO + 1 NC |
| Connection Type | Screw clamp terminals / <= 2 x 1.5 mm² with cable end conforming to IEC 60947-1 / Screw clamp terminals / 1 x 0.34 - 2 x 2.5 mm² without cable end conforming to IEC 60947-1 |
| Operating Period | 100000 cycles (mechanical) / 1000000 cycles / DC-13 / 0.3 A at 24 V / operating rate <216000 cyc/mn / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / AC-15 / 0.03 A at 230 V / operating rate <216000 cyc/mn / load factor: 0.5 conforming to IEC 60947-5-1 appendix C / 1000000 cycles / AC-15 / 0.09 A at 240 V / operating rate <108000 cyc/mn / load factor: 0.5 conforming to IEC 60947-5-1 appendix C (electrical) |
| Warranty | 12 Months |
