Description

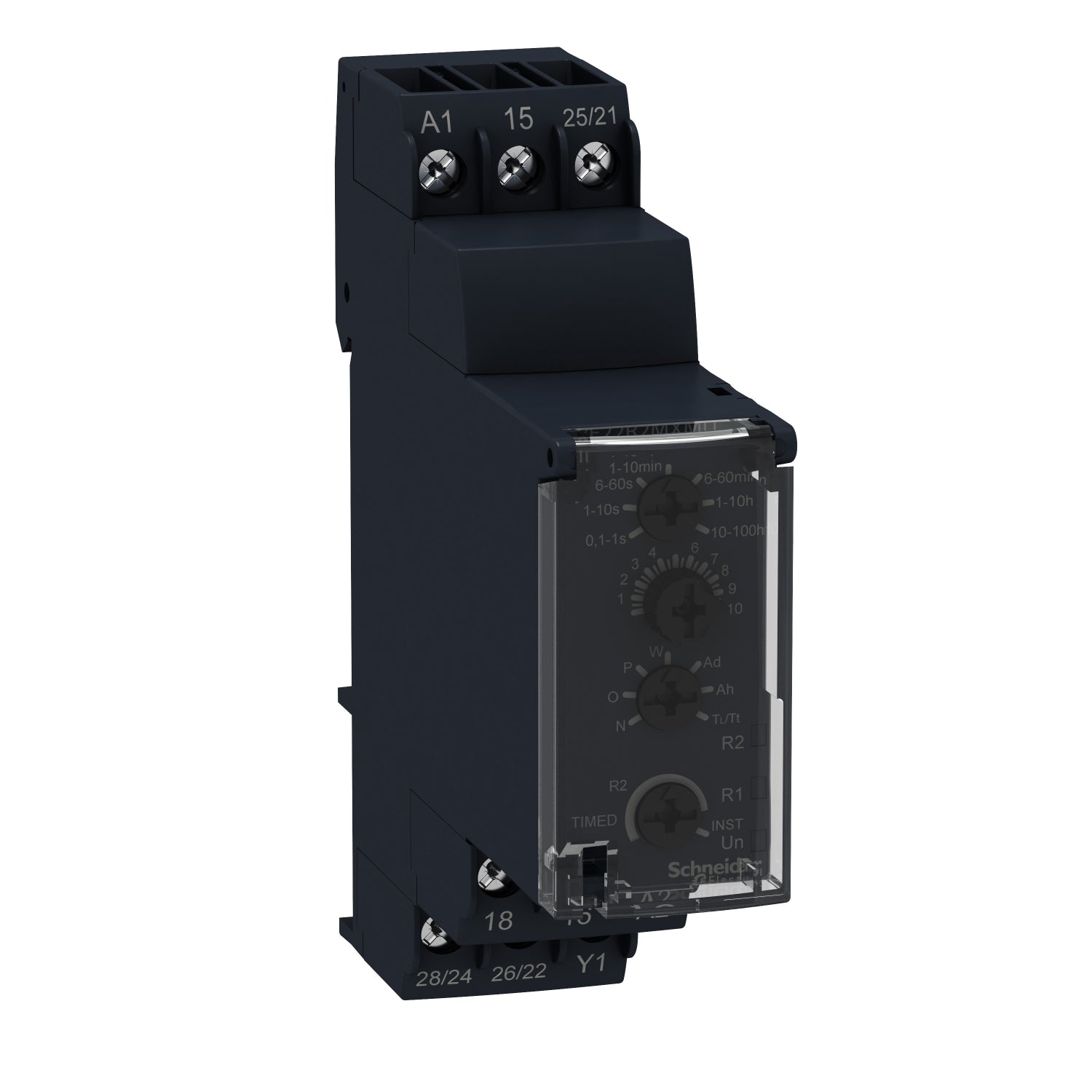

xThis modular timing relay provides 2 changeover contacts and operates across a supply voltage range of 24-240VAC/DC, allowing use in installations with varied control voltages. Housed in a 22.5mm-wide enclosure with IP40 protection, it is designed for DIN rail mounting within control panels. Screw terminal connections accommodate cable cross-sections of 1.5 mm² and 2.5 mm², and the unit is rated for operation across a temperature range of -20 to 60°C.
Key specifications
- IP rating: IP40 housing: conforming to IEC 60529
- Connection: Screw terminals, 2 x 1.5 mm² with cable end,Screw terminals, 2 x 2.5 mm² without cable end
- Operating temperature: -20…60 °C
Specifications
x| IP Rating / Detailed | IP40 housing: conforming to IEC 60529 |
| Compliance/Certifications | IEC 61812-1,IEC 61000-6-1,IEC 61000-6-3,IEC 61000-6-4,IEC 61000-6-2 |
| Temperature: Operating | -20…60 °C |
| Part Width (mm) | 22.5mm |
| Part Length (mm) | Pulse delay - Pt- Pulse delayed relay w/ fixed pulse length and pause/summ |
| Connection Style | 1 C/O timed contact |
| Connection Type | Screw terminals, 2 x 1.5 mm² with cable end,Screw terminals, 2 x 2.5 mm² without cable end |
| Supply Voltage | 24...240 V AC |
| Voltage Range | 0.85...1.1 Us |
| Power Consumption | in VA |
| Operating Period(Mech) | 10000000 cycles |
| Operating Period(Elec) | 100000 cycles for resistive load, 8 A at 250 V, AC |
