Description

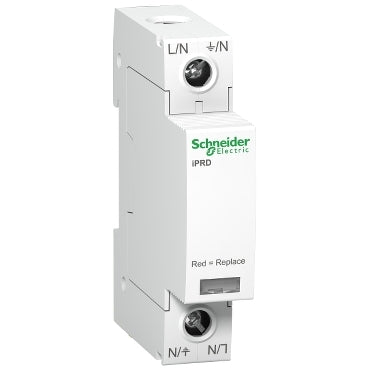

xThe iPRD40 modular surge arrester is designed for 230 V AC networks, offering protection against surges up to 40 kA. It uses MOV technology and is suitable for TN-C and IT earthing systems, with Type 2 protection for reliable voltage regulation.
Specifications
x| Compliance/Certifications | EN 61643-11:2012 / IEC 61643-11:2011 |
| Temperature: Operating | -25°C to 60 °C |
| Part Depth (mm) | 69mm |
| Part Width (mm) | 18mm |
| Part Height (mm) | 85mm |
| Weight (g) | 110g |
| Packaging size / unit | 1 / 12 / 108 pc(s) |
| Tightening Torque | 2.5 Nm |
| Connection Type | Tunnel type terminal (downside) 2.5 - 35 mm² / Tunnel type terminal (upside) 2.5 - 35 mm² |
| Operating Voltage | Common mode: 350 V L/PE |
| Rated Operating Voltage | 230 VAC (+/- 10 %) at 50/60 Hz |
| Mounting Type | Clip-on (DIN rail) |
| Warranty | 18 Months |
| Colour | White |
| RAL Code | RAL 9003 |
