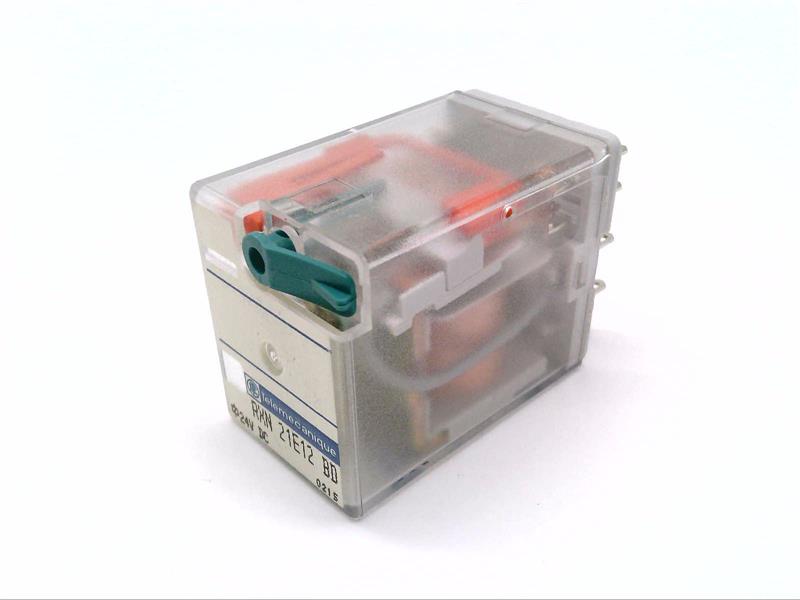

Schneider Miniature relay, 2 c/o, 24VDC + LED Part number RXN21E12BD

The RXN21E12BD is a miniature plug-in relay from Schneider's Zelio RXN range, fitted with a status LED and a 24 V DC coil. It provides 2 changeover contacts rated at 5 A, 250 V AC, with silver alloy contact material, and mounts via an 8-pin plug-in terminal into RUZ series...
Vendor: Schneider Electric
Availability: Out Of Stock
Product type: Control Panel
Please hurry! Only 0 left in stock
Description
Description
x

The RXN21E12BD is a miniature plug-in relay from Schneider's Zelio RXN range, fitted with a status LED and a 24 V DC coil. It provides 2 changeover contacts rated at 5 A, 250 V AC, with silver alloy contact material, and mounts via an 8-pin plug-in terminal into RUZ series sockets. This makes it suitable for general-purpose control and automation tasks within control panels, operating across a temperature range of -40°C to +70°C.

Key specifications

  • Operating temperature: -40°C to +70°C
  • Dimensions: 13 mm x 29 mm x 35 mm
  • Mounting: Plug-in
Specifications
Specifications
x

RXN21E12BD Miniature Relay – 24 V DC, 2CO

Product Overview

Product NameRXN21E12BD Miniature Relay
Product IDRXN21E12BD
RangeZelio RXN
Product TypeMiniature Plug-in Relay
ApplicationGeneral-purpose control and automation
Number of Poles2
Contact Configuration2CO (2 Changeover Contacts)
Coil Voltage24 V DC
Contact Rating5 A at 250 V AC
Mounting TypePlug-in
Socket CompatibilityRUZ Series Sockets
Dimensions (W x H x D)13 mm x 29 mm x 35 mm
Net Weight0.035 kg

Technical Specifications

Coil Resistance640 Ω ±10% at 20°C
Operating Voltage Range19.2 V to 26.4 V DC
Power Consumption0.9 W
Mechanical Durability10,000,000 cycles
Electrical Durability100,000 cycles at 5 A, 250 V AC
Dielectric Strength2,000 V AC between coil and contacts
Operating Temperature-40°C to +70°C
Storage Temperature-40°C to +85°C
Insulation Resistance>100 MΩ at 500 V DC
Contact MaterialSilver Alloy
Terminal Type8-pin plug-in

Environmental Data

RoHS ComplianceCompliant
REACH RegulationCompliant
China RoHS RegulationOut of scope
Mercury FreeYes
Green Premium LabelYes

Certifications

  • CE Marking
  • UL Recognized
  • CSA Certified
  • IEC 61810-1
